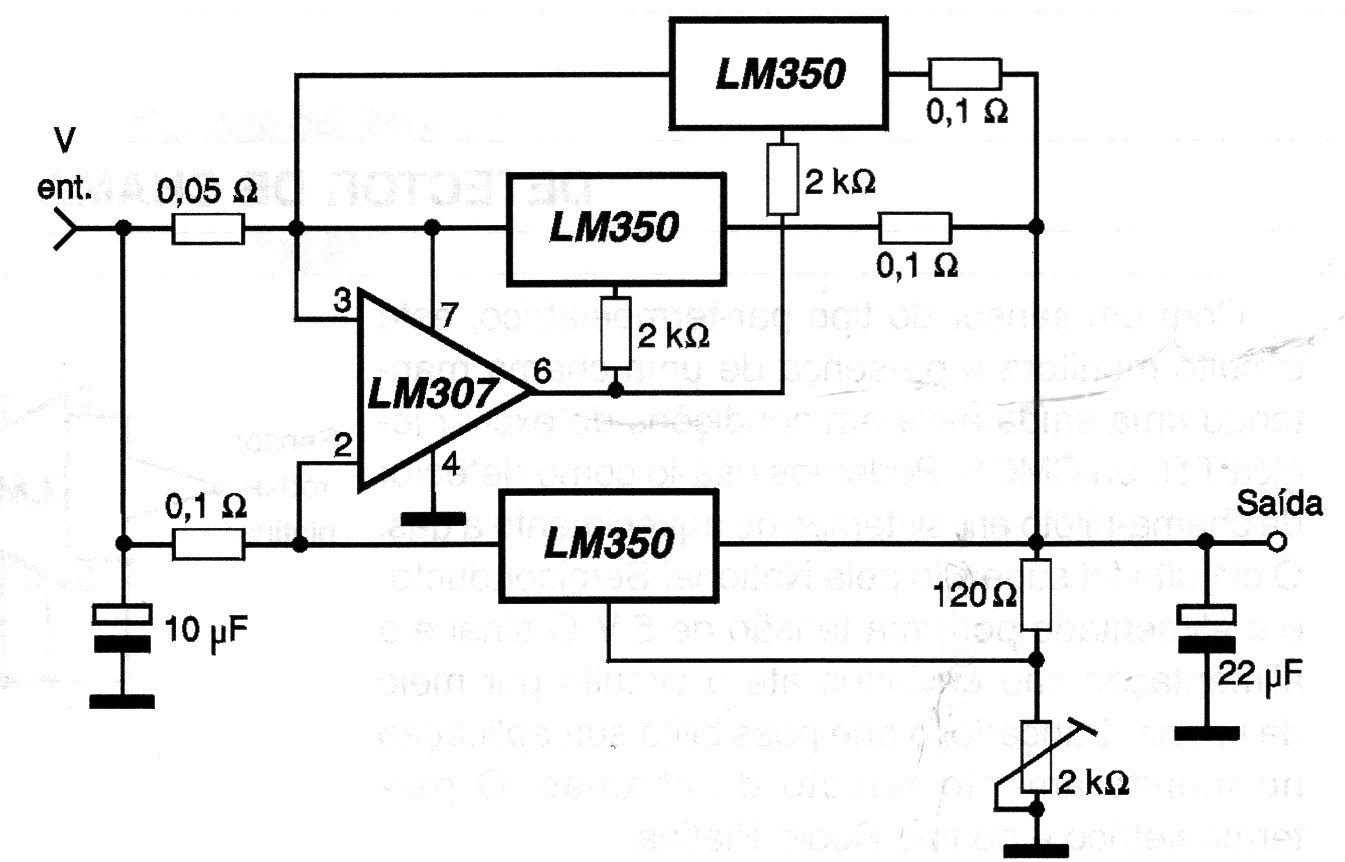

With this circuit it is possible to regulate a source of up to 9 A using 3 LM350. The integrated circuits must be mounted on good heat radiators and the adjustment of the output made in a trimpot. The input voltage must be at least 2 V higher than the highest desired output voltage. The output voltage range is from 1.2 to 25 V.
| Clique na imagem para ampliar |
