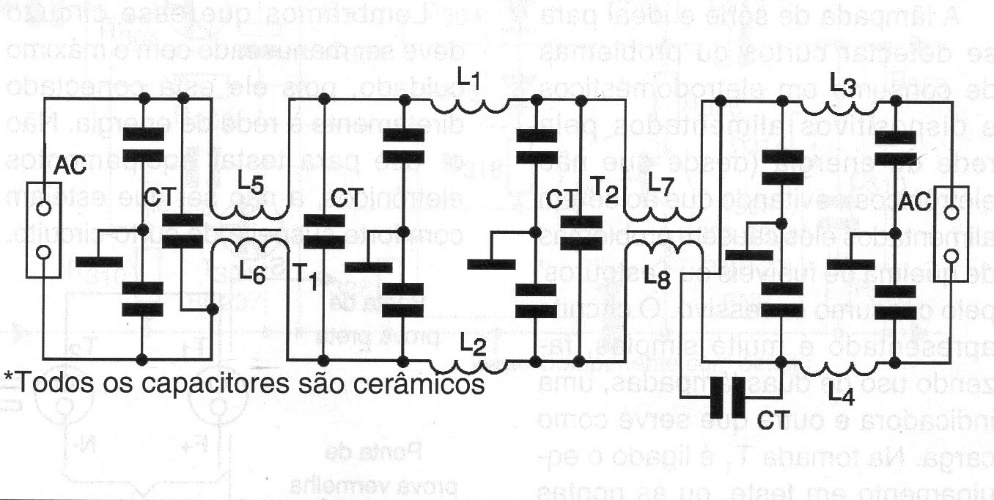

This efficient filter against EMI has several coils, being L1 and L2 formed by 100 turns of wire 14 to 22 AWG in 1 cm ferrite rod, L3 and L4 have 74 turns of the same wire and the remaining turns have 50 turns of the same wire. The capacitors are all 100 nF x 600 V ceramic.
