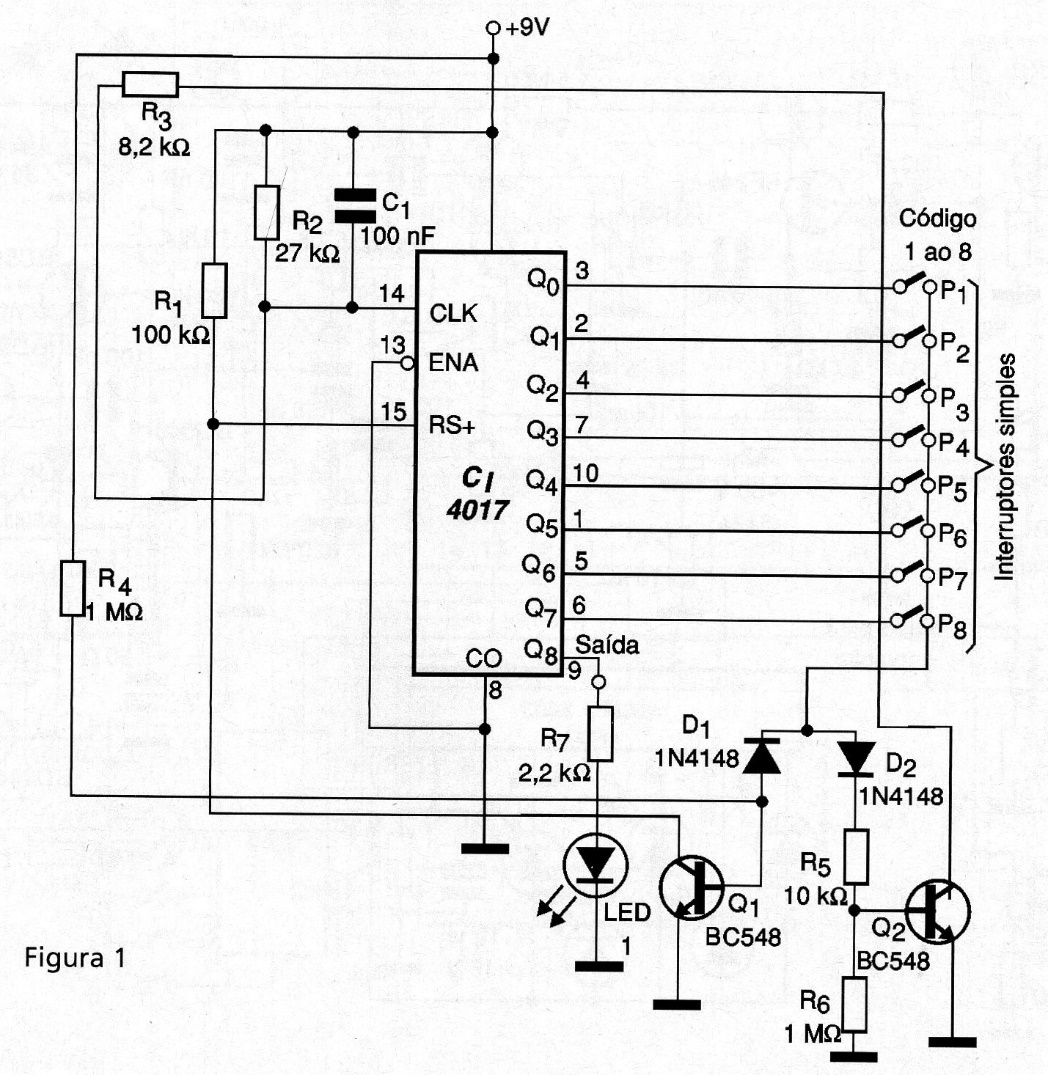

This circuit was found in a publication in 2002 and can be powered by voltages from 5 to 12 V. The output, in the example, is given with the lighting of an LED, but in a practical application, a power step can be used to activate the relay another charge.
| Clique na imagem para ampliar |
