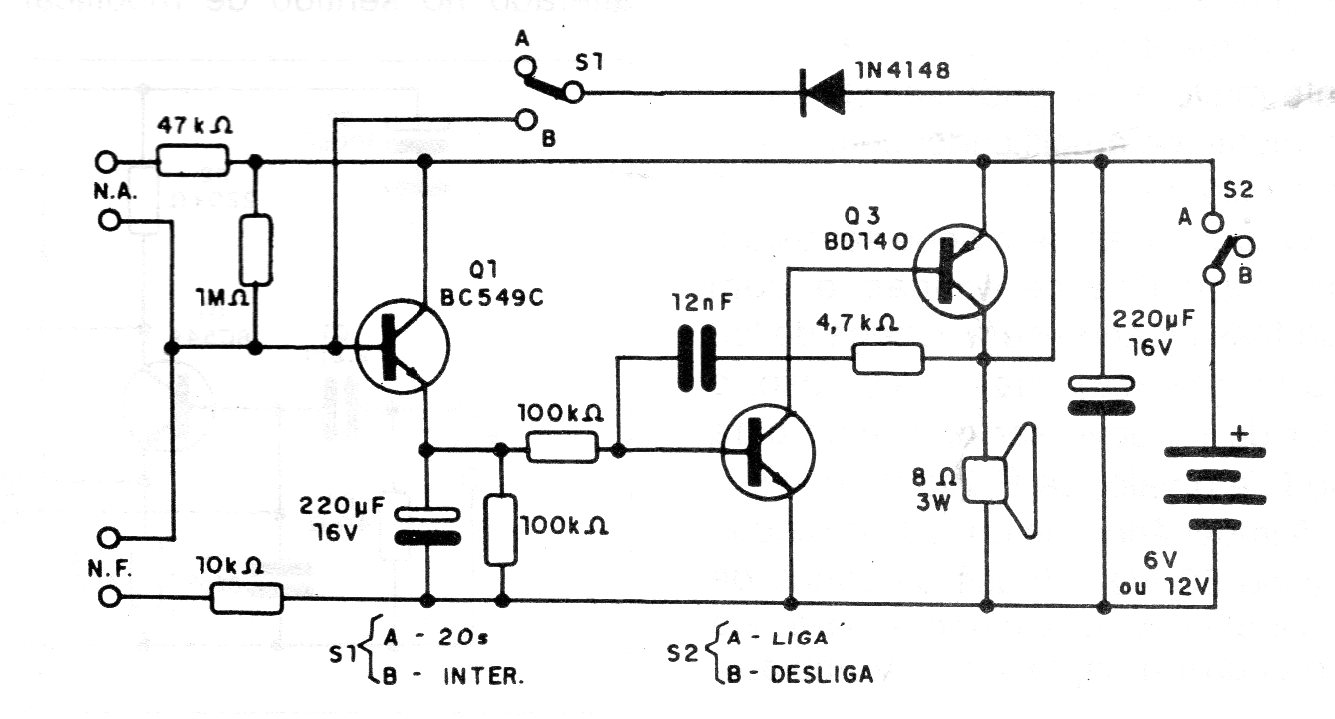

This simple circuit consists of an oscillator that can be activated both by the action of NO and NC sensors. The BD140 transistor must have a heat sink. The power comes from large batteries or battery.
| Clique na imagem para ampliar |
Residential Alarm (CB17074E)
- Details
- Written by: Newton C. Braga
