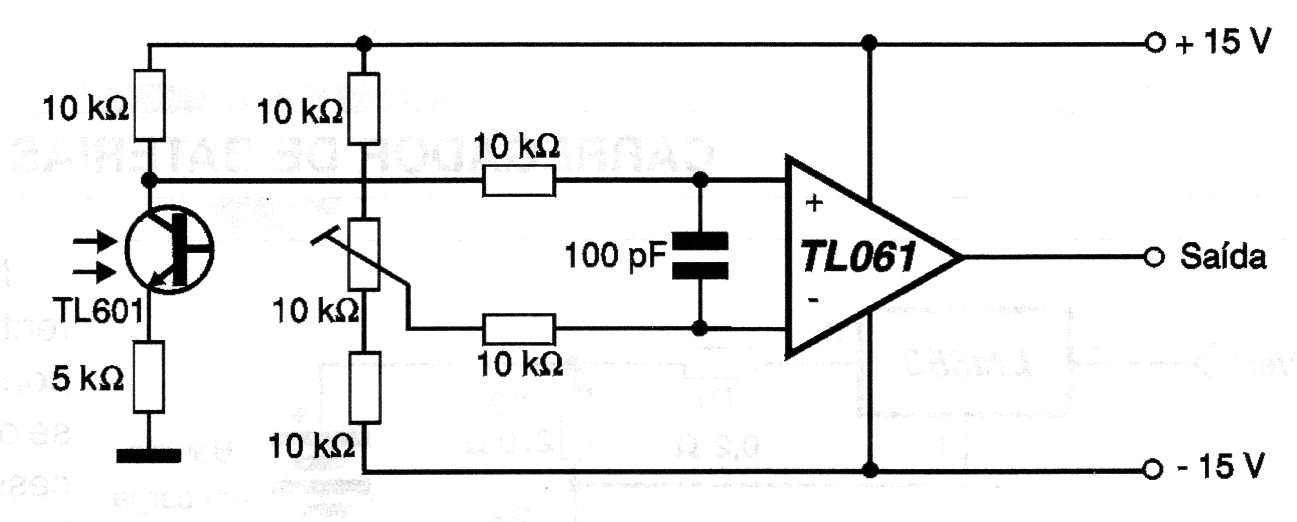

This circuit, from 2001 documentation, uses a phototransistor as a sensor and an operational amplifier with FET. The circuit is adjusted in a trimpot and the power supply must be symmetrical.
| Clique na imagem para ampliar |
Optical Detector with Amplifier (CB17549E)
- Details
- Written by: Newton C. Braga
