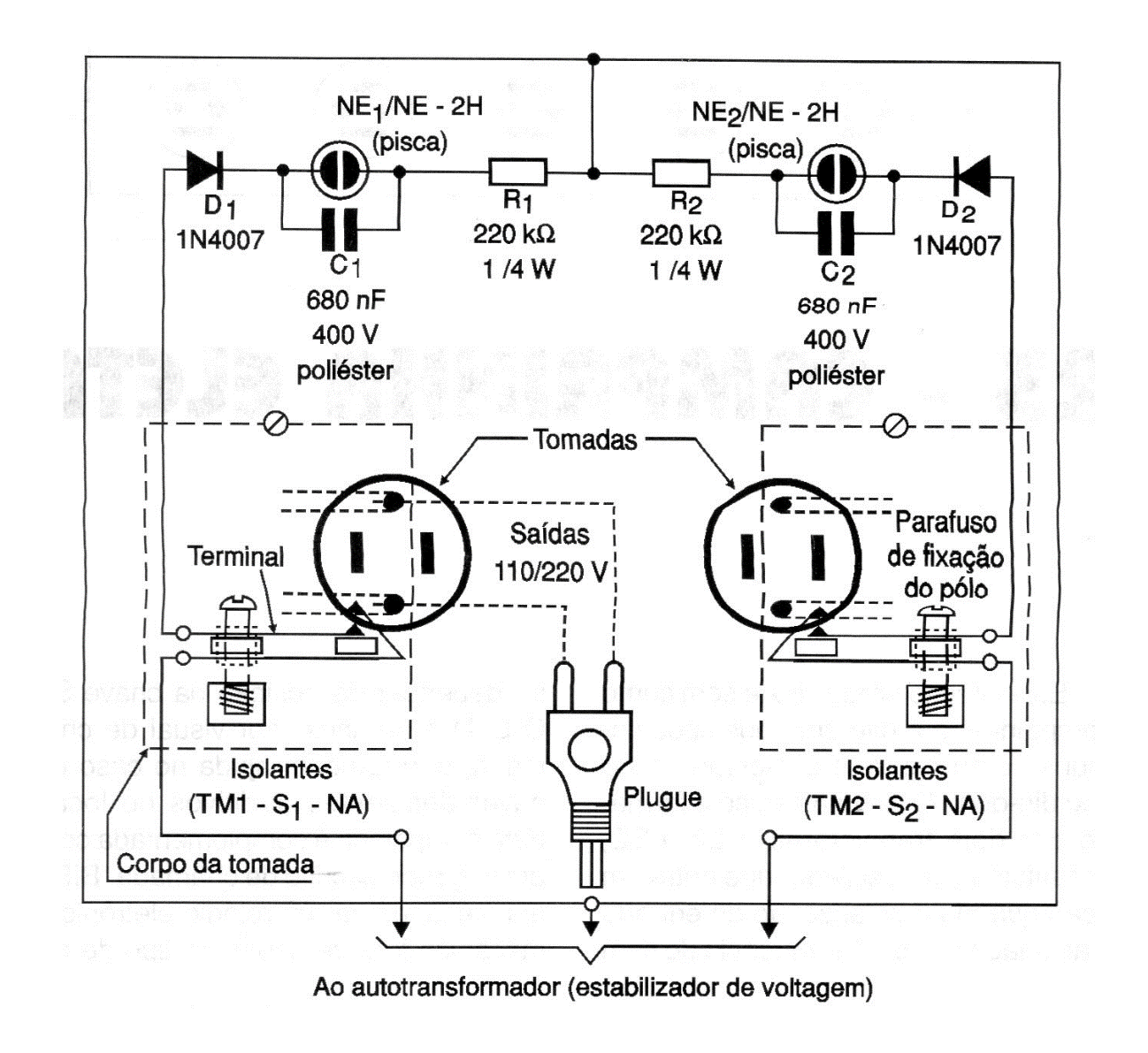

We found this circuit in a 2002 documentation. It still uses old type plugs, but it can be adapted to the current standard. Its purpose is to signal when a device is connected, and it is on. The neon lamp is the common type of any type.
