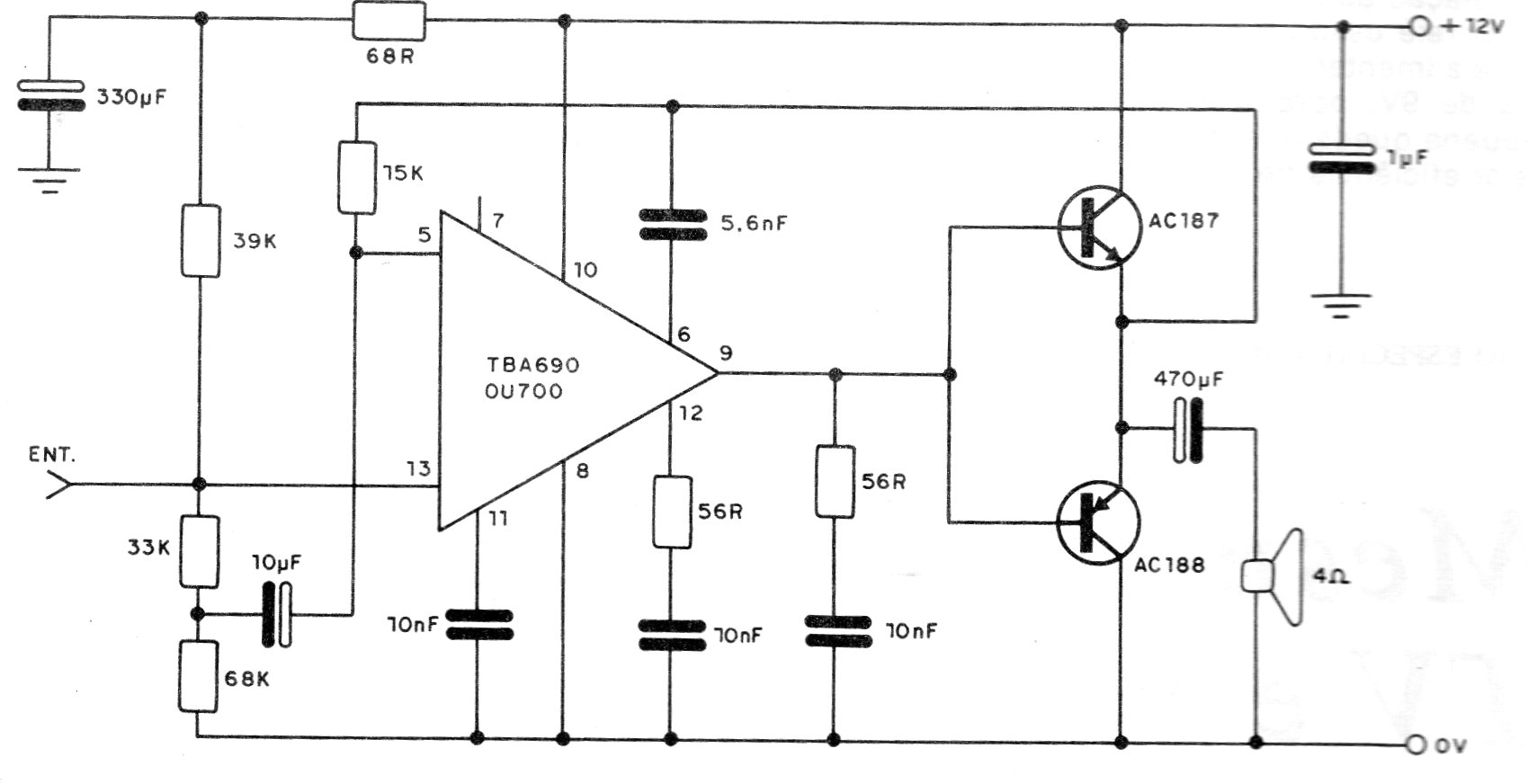

The integrated circuit used in this 1986 project is uncommon today, but the idea of the output configuration is still valid today for use with other amplifiers. The transistors used in the output are also old, germanium, not easy to find. BD135 and BD136 can be used as equivalents.
| Clique na imagem para ampliar |
