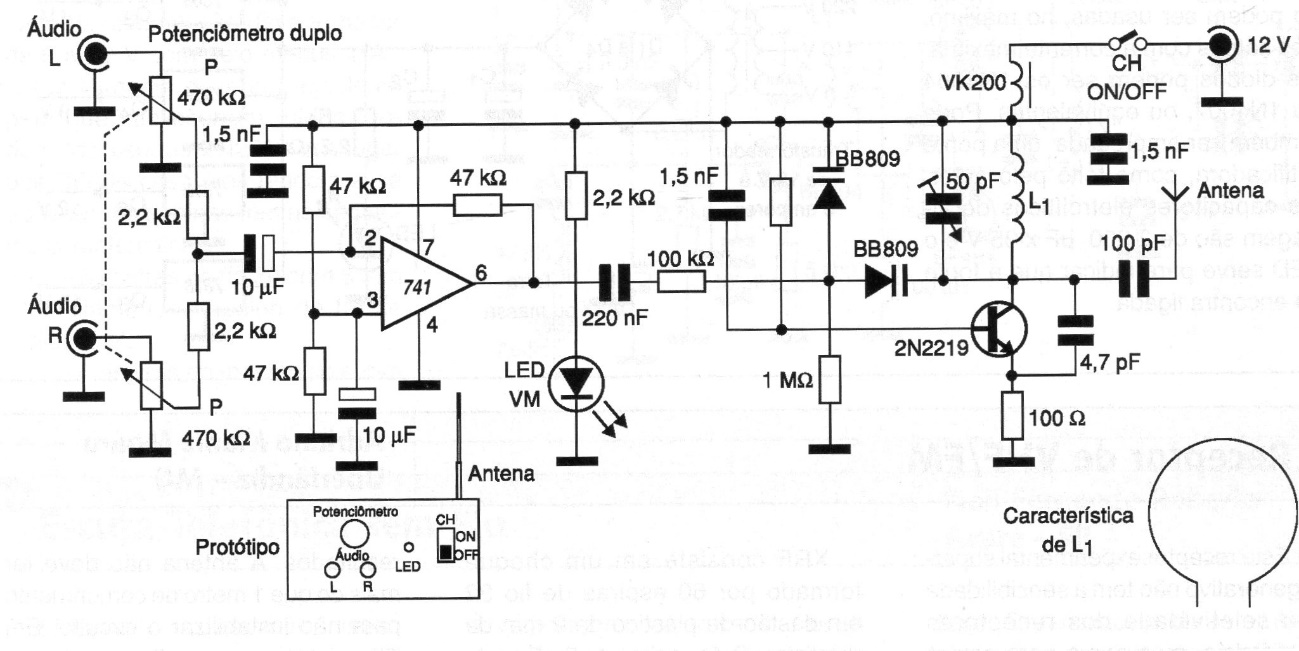

This circuit transmits the sound signals from a television or amplifier to an FM receiver at up to 50 meters. The signal is not multiplexed. L1 consists of a single loop of wire 18 without a core. The power must come from a 12 V source with excellent filtering so that no snoring occurs.
| Clique na imagem para ampliar |
