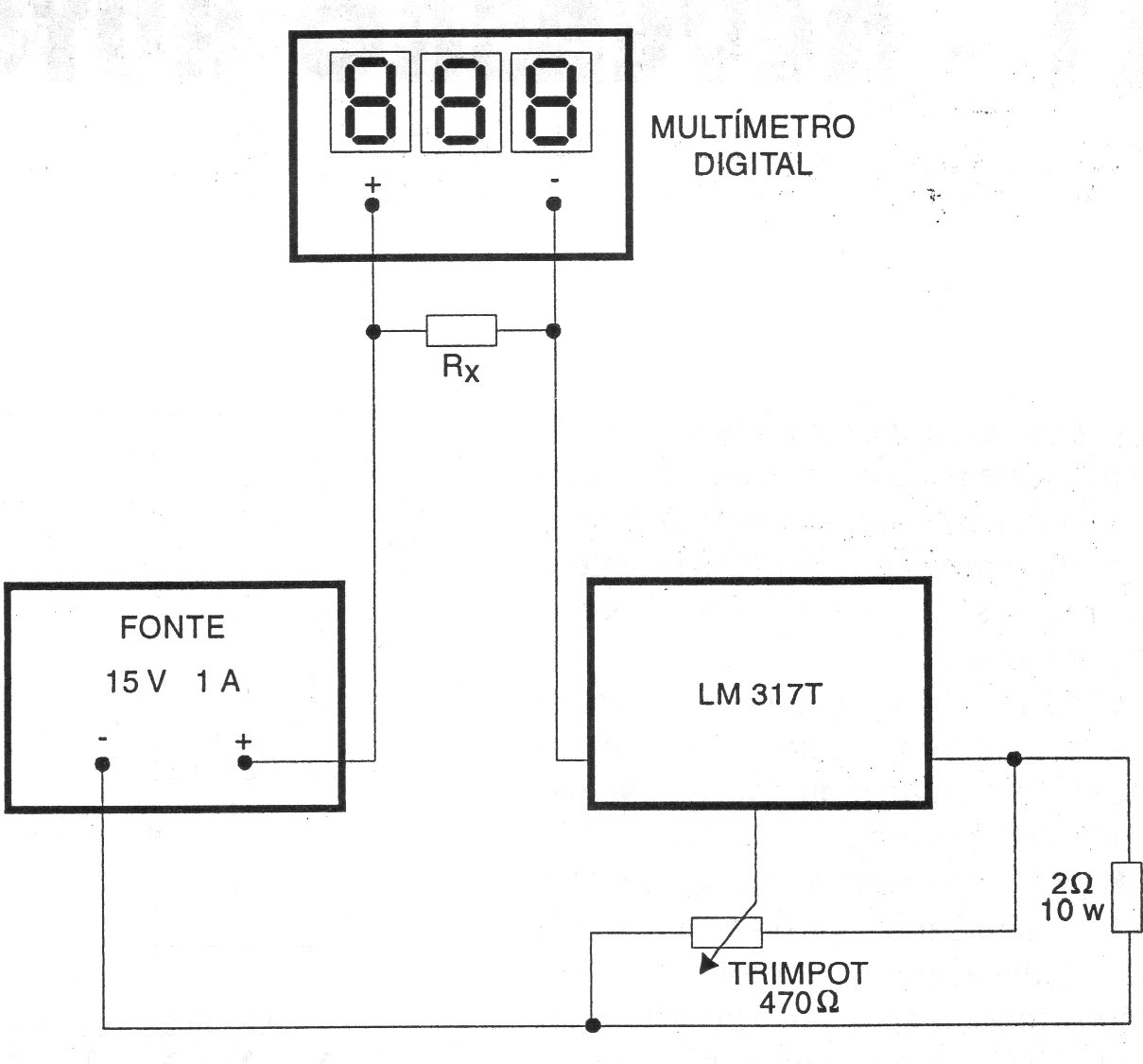

This circuit, with the help of a 15 V x 1 A source, allows to measure small resistances, consisting of a constant current source. The trimpot is adjusted to obtain a current of 1 A so that, if the measured resistor has a measured voltage drop of 1 mV, we can say that it has 1 milliohm. The integrated regulator must be equipped with a heat sink.
