13 V x 10 A power supply (CB17628E)

Details
Written by: Newton C. Braga

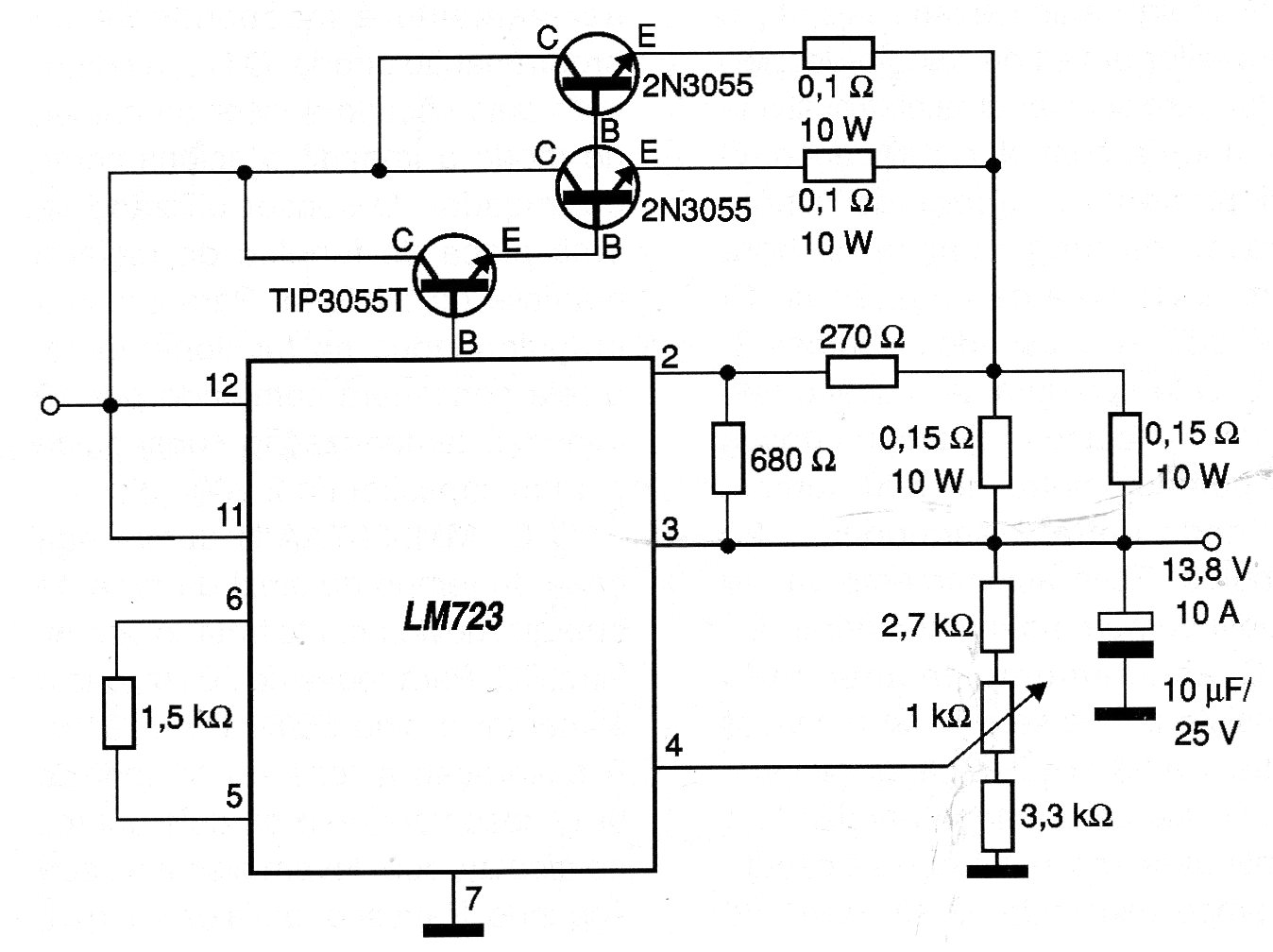

It is a 13.8 V x 10 A regulator obtained in a 2008 documentation. The 2N3055 transistors must be mounted in excellent heat sinks and the voltage is adjusted in the trimpot.






| Clique na imagem para ampliar |
