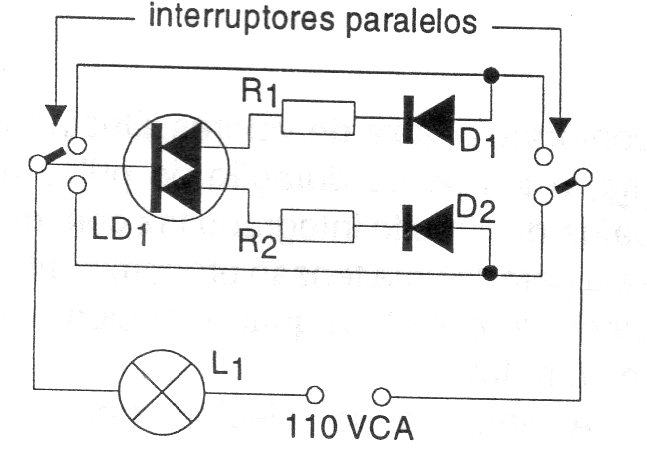

This circuit monitors the activation of a lamp or other load through parallel or two-way switches. The circuit also works at 220 V. For 110 V the resistors are 47k x ½ W and for 220 V 100k x ½ W. Common bicolor LEDs can be used.
