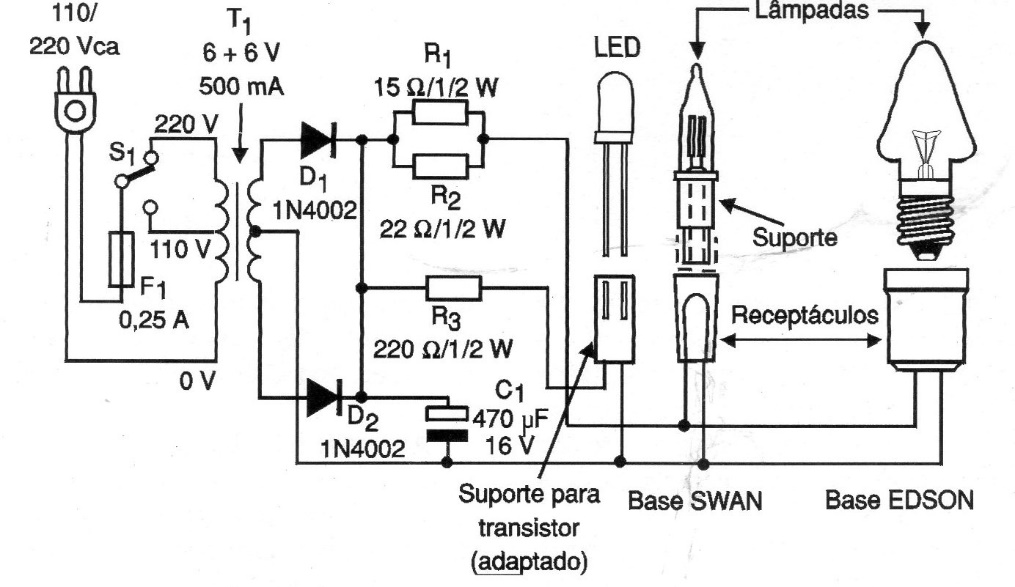

This is a circuit for testing small lamps and LEDs. The lamps that can be tested are the ones commonly used in old Christmas tree systems, since modern ones use LEDs and are microcontrolled. The circuit has current limiting resistors and was found in 2001 documentation.
