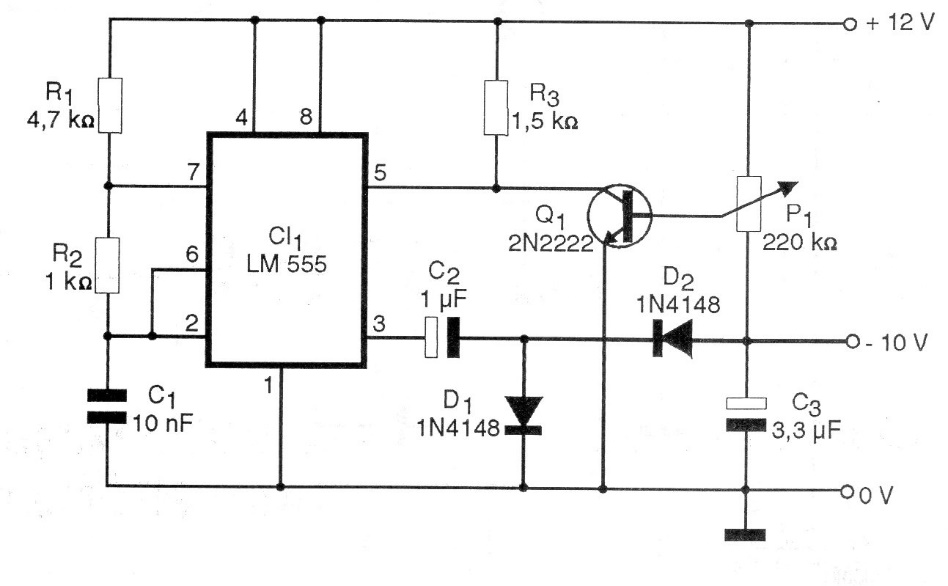

This simple voltage doubler with the 555 works by reversing the polarity of the input voltage (supply). We then obtain a negative voltage that can be adjusted in the trimpot. The circuit is used in polarization as the available current is very low.
