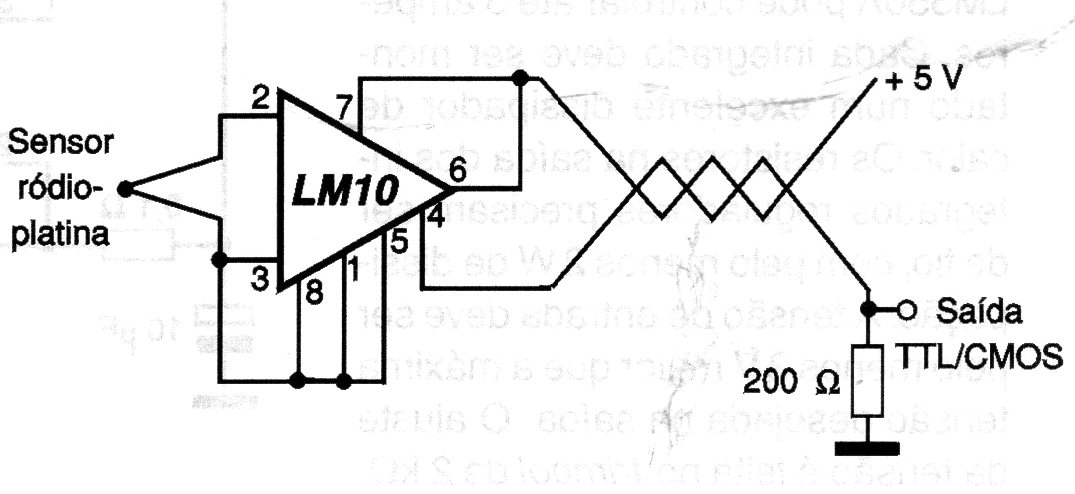

This circuit is intended to monitor the flame of gas heating systems that must always have a small pilot flame burning. The sensor is a thermocouple, and the output is compatible with TTL or CMOS logic which allows its use with microcontrollers.
| Clique na imagem para ampliar |
