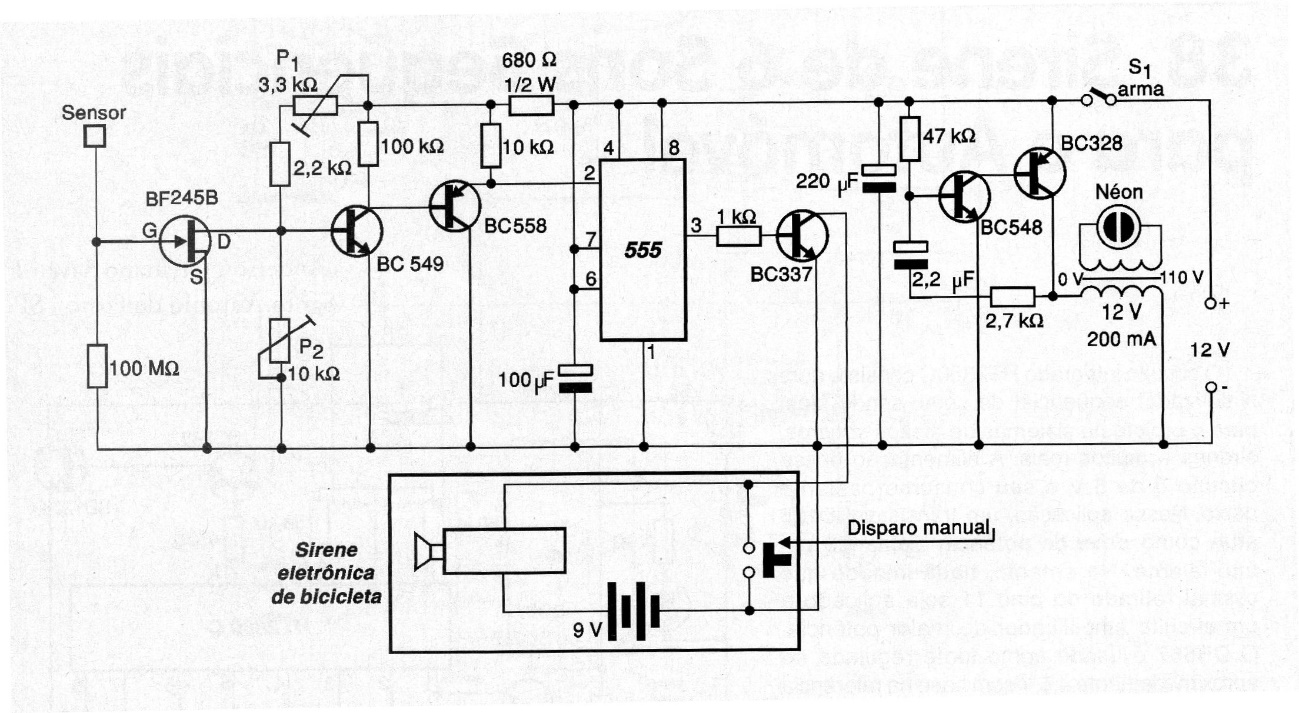

This capacitive approach alarm circuit was found in a 2002 documentation. The wire to the sensor element, a flat iron placed on the motorcycle panel, should be short and shielded if possible. The circuit has a neon operation indicator, which in a modern version can be replaced by a blinker LED.
