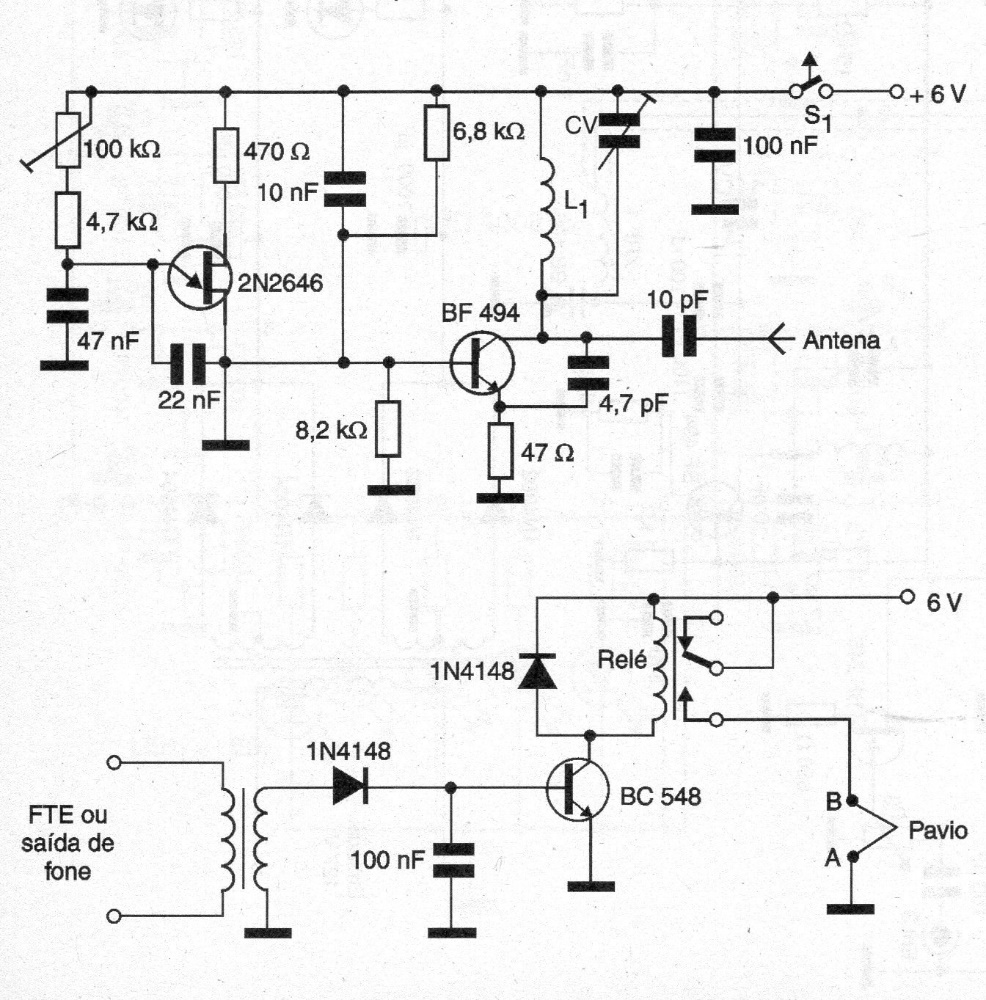

This circuit uses a small FM receiver to fire a rocket from a distance. The circuit is from 2005 and has the major problem that transients can cause the circuit to trip erratically, which requires great care. The transmitter coil has 4 turns of wire 24 to 28 in the form of 1 cm without core.
