Light Remote Control (CB17526E)

Details
Written by: Newton C. Braga

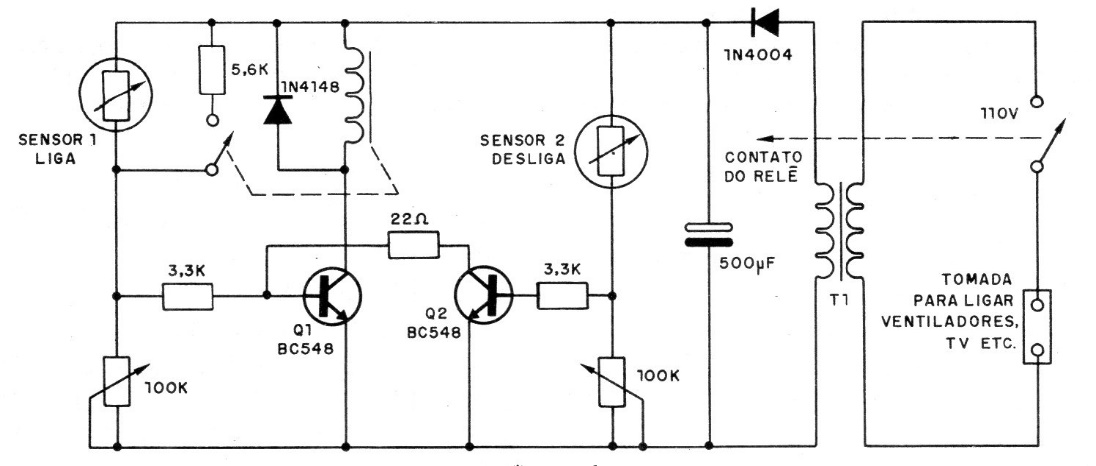

Two sensors are used in this simple remote-control circuit, one to switch on and one to switch off the relay. The circuit is from 1986 documentation. The transformer has 12 V of secondary.
