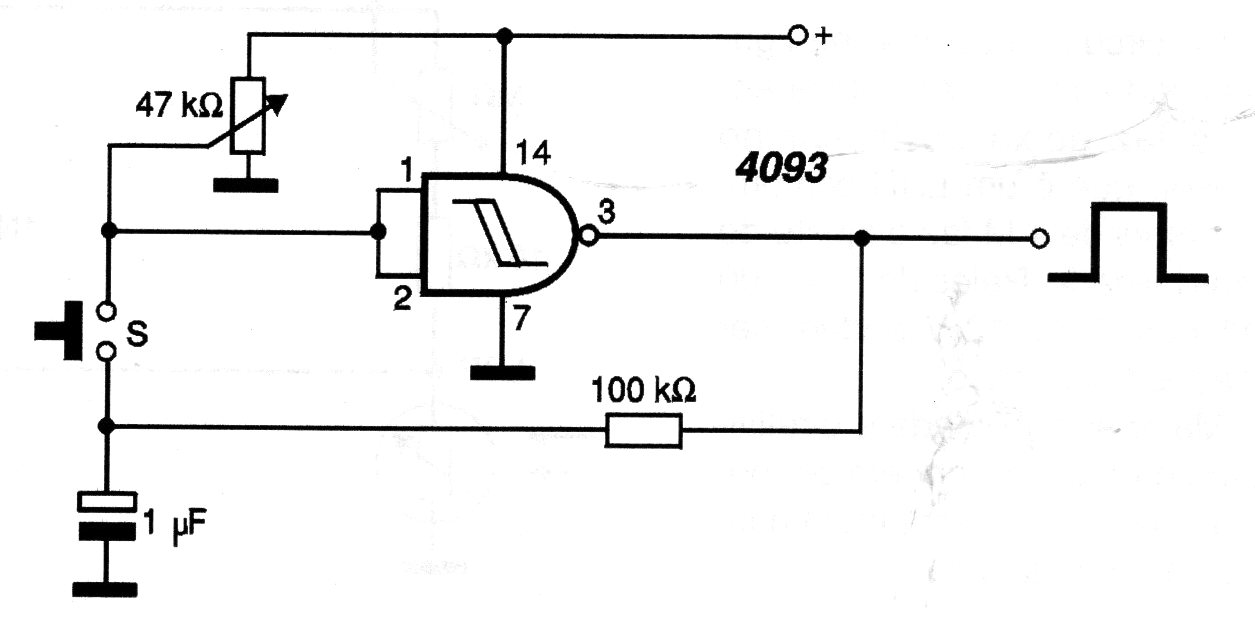

In the figure we have the way to implement a bistable with CMOS 4093. The supply can be done with voltages from 3 to 15 V and the adjustment of the operation is done in the trimpot.
| Clique na imagem para ampliar |
Bistable 4093 (CB17604E)
