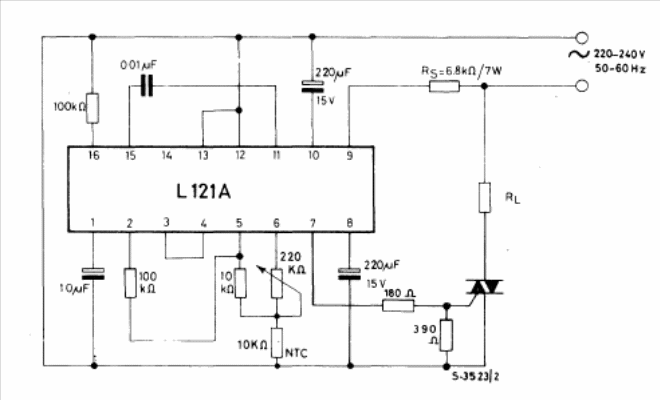

We found this temperature control in the SGS manual of linear integrated circuits of 1982. The integrated one is not common today, but if found it allows the realization of this very efficient control. The Triac depends on the heating element to be controlled.
| Clique na imagem para ampliar |
