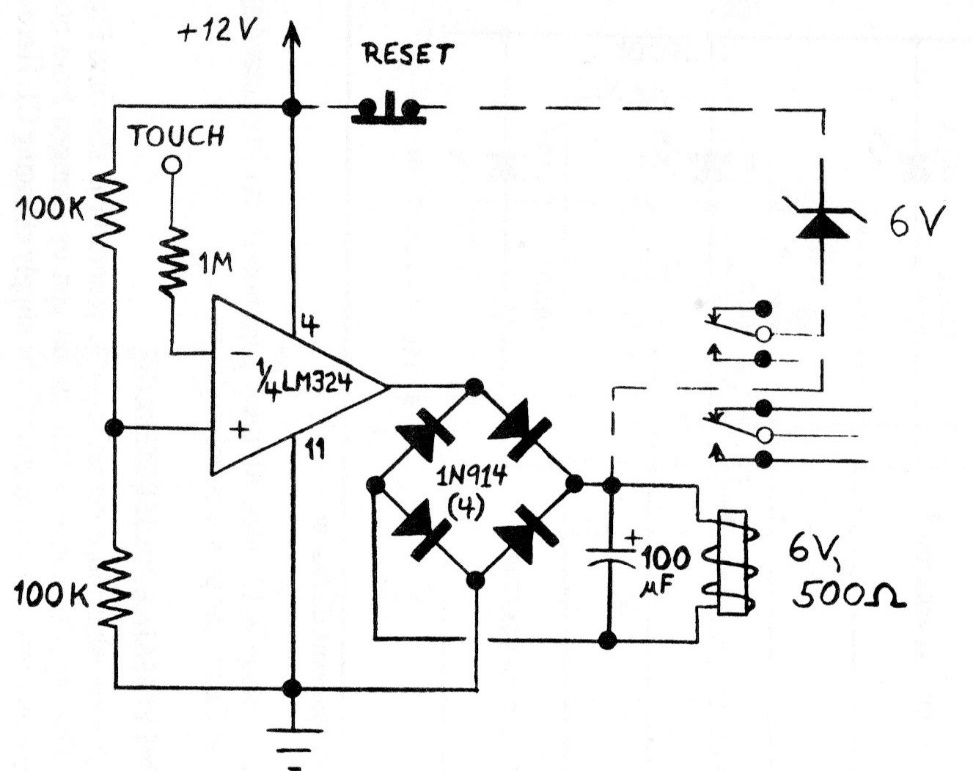

This sensitive circuit uses an LM324 operational amplifier that can be replaced by an equivalent. The source can be between 6 and 12 V according to the relay which is of the sensitive reed type. Never use a source without a transformer to power this circuit.
