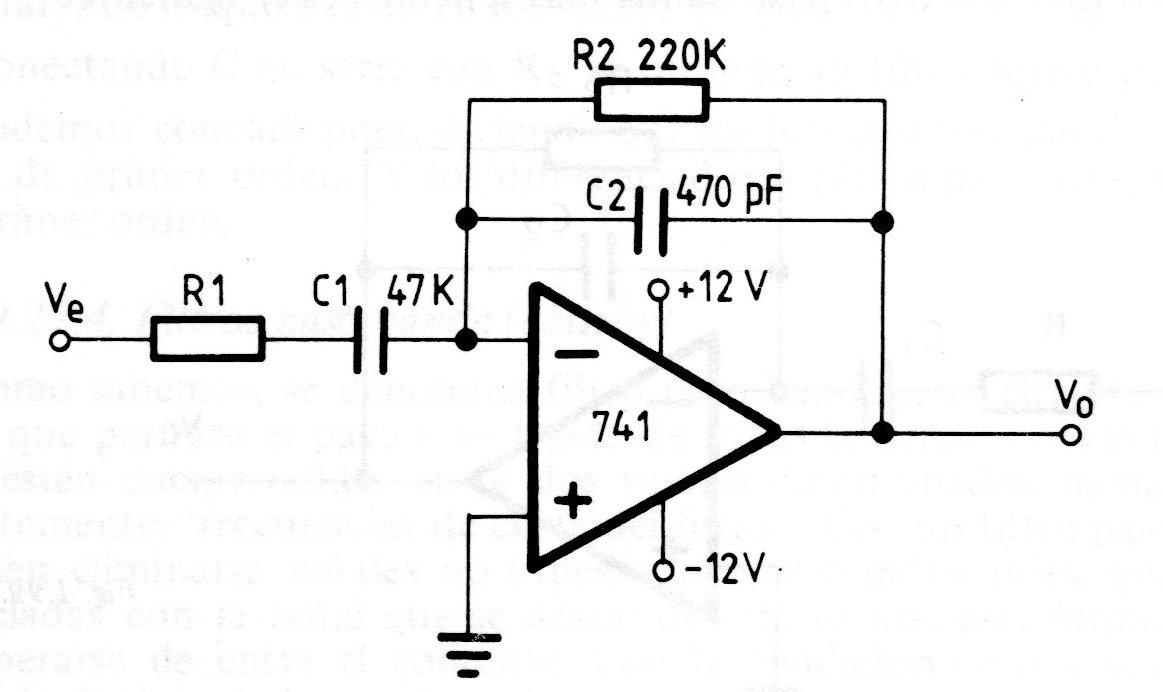

This filter, which uses an operational 741, passes the frequency band from 500 Hz to 1 500 Hz, with the values of the components used. The circuit may have these components altered to allow other frequency bands to pass. The power supply must be symmetrical with a voltage range of 6 to 15 V.
