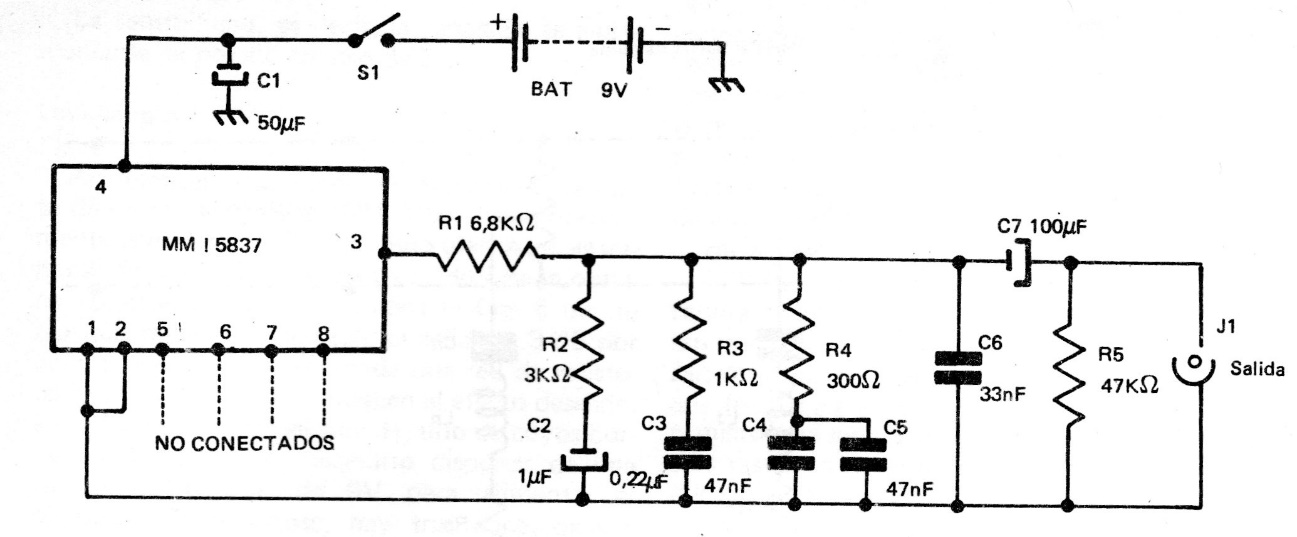

The integrated circuit used in this 70's application is uncommon nowadays but knowing that it generates a rectangular signal rich in harmonics, an equivalent configuration with modern components can be elaborated. Power must be supplied with batteries to avoid noise problems.
| Clique na imagem para ampliar |
