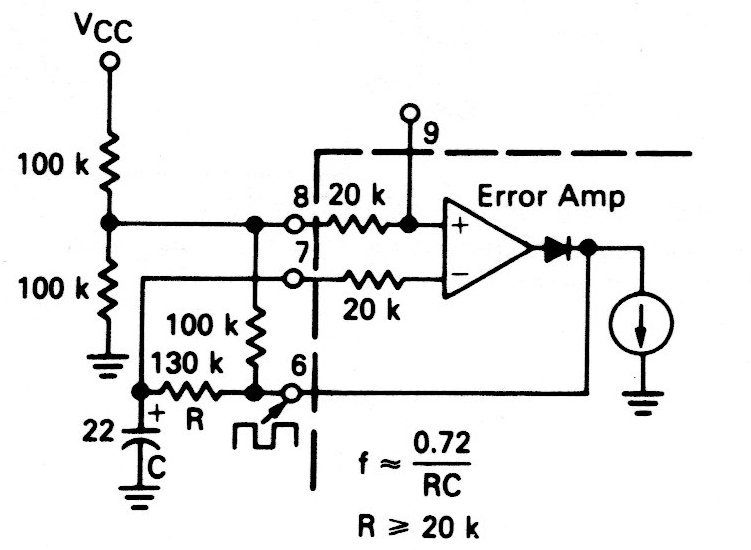

What this circuit does is to agitate a servo at a frequency of 0.25 Hz, which can be used in automations. The frequency is given by the capacitor and the error amplifier can be implemented by an operator.
| Clique na imagem para ampliar |
0.25 Hz Servo Shaker (CB19801E)
- Details
- Written by: Newton C. Braga
