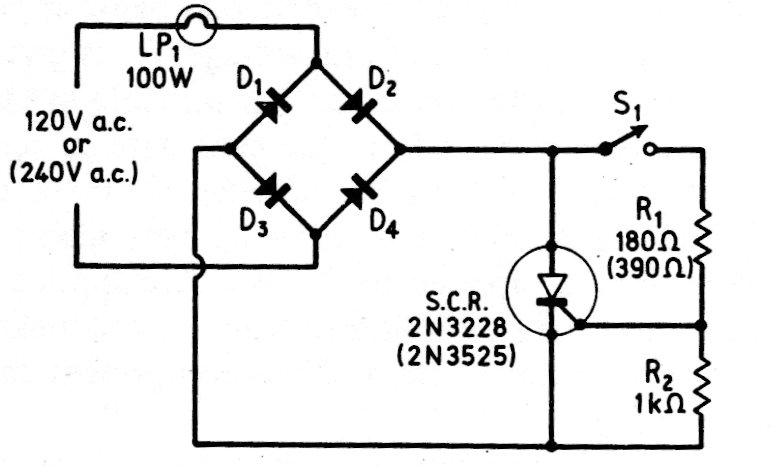

In the figure we have the way to configure a control for incandescent lamps with full wave control using SCR. The diodes must withstand the current of the lamp and the circuit works on both the 110 V and 220 V network. The SCR can be of the 106 series. It only changes the position of the lamp in relation to the previous circuit.
