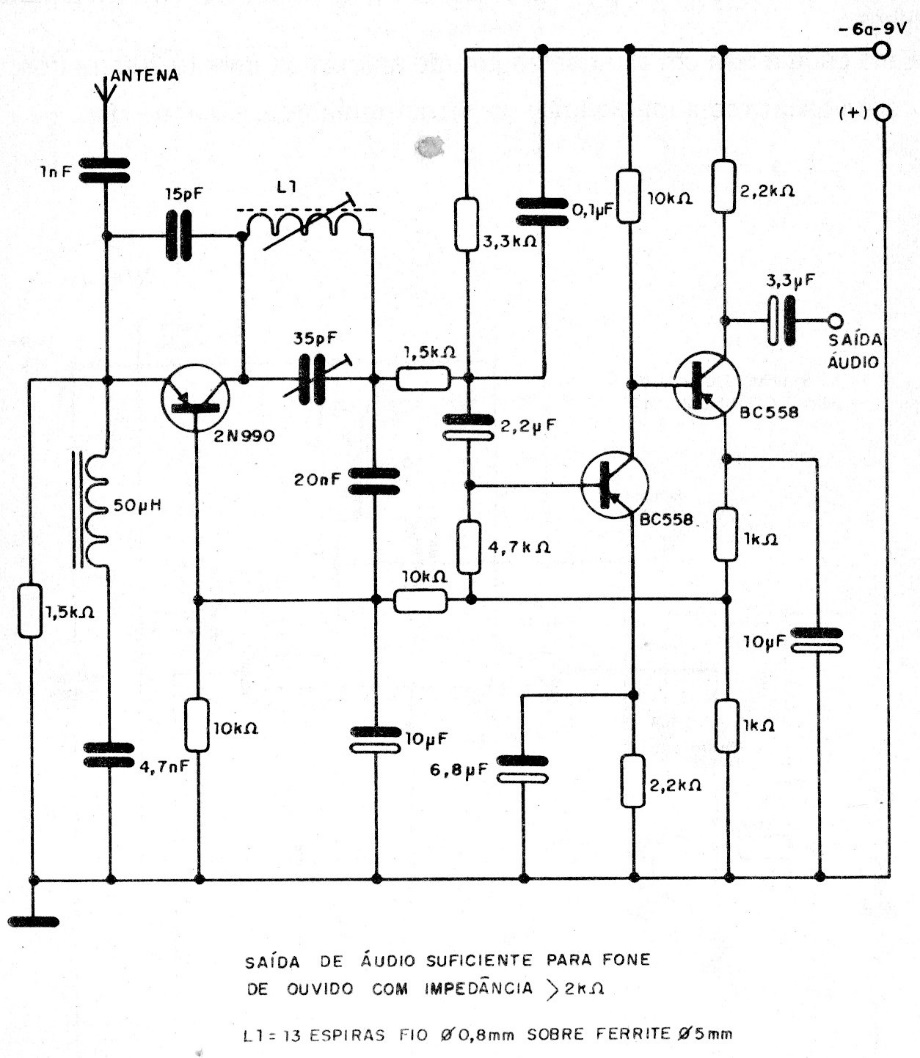

This receiver was obtained in a documentation from the 90's and is of the super-regenerative type. We can use it on remote control or on an intercom. The coil data is provided next to the diagram. An audio stage must be added to listen to the earpiece or speaker.
