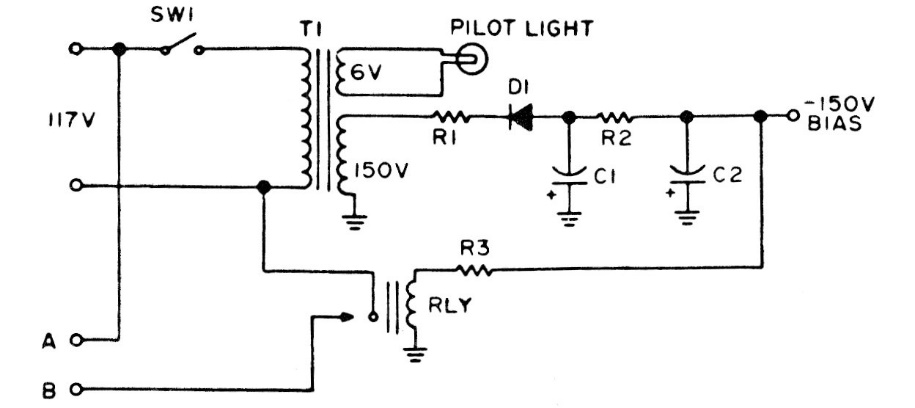

The purpose of this circuit is to cut off the high voltage when the bias voltage fails. The circuit is from a 1975 documentation and can be adapted for other purposes.
| Clique na imagem para ampliar |
Protection Circuit (CB19969E)
- Details
- Written by: Newton C. Braga
