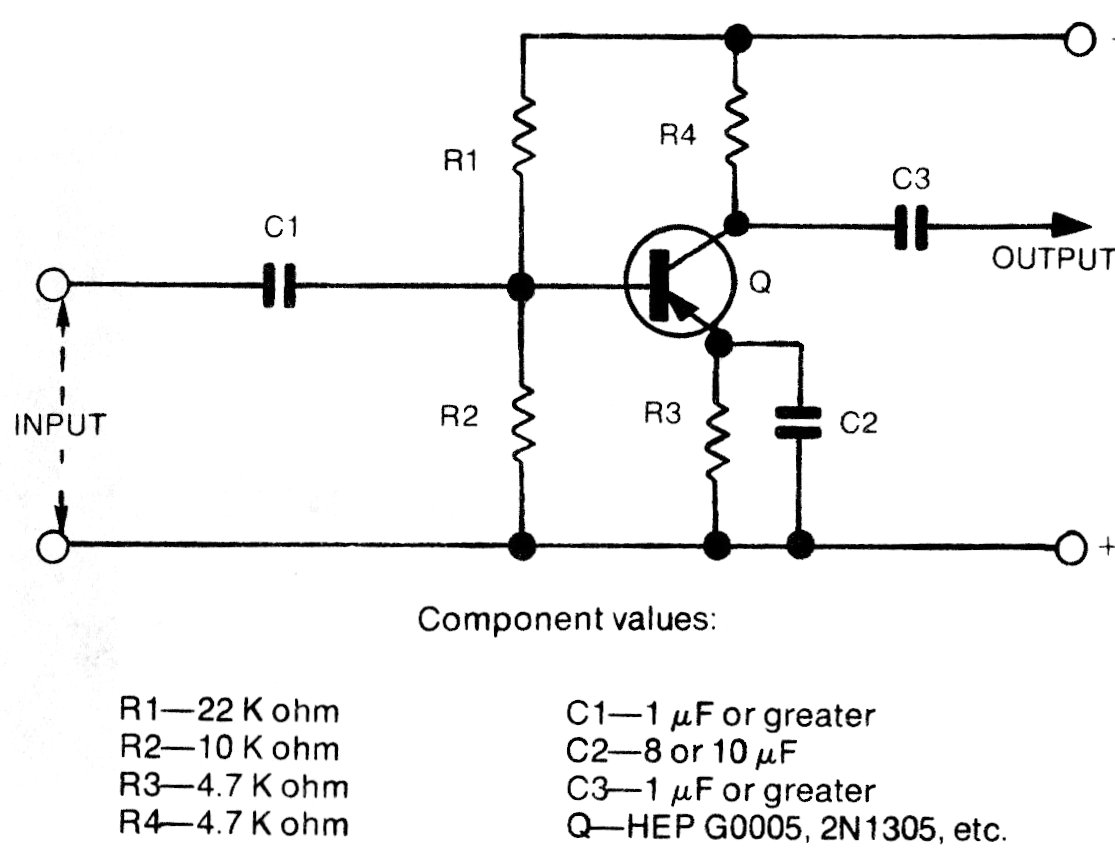

This is a typical amplifier stage with 1 old general purpose silicon transistor. The circuit is from 1980s documentation and the component values can be changed. The circuit can be powered with voltages from 3 to 9 V.
