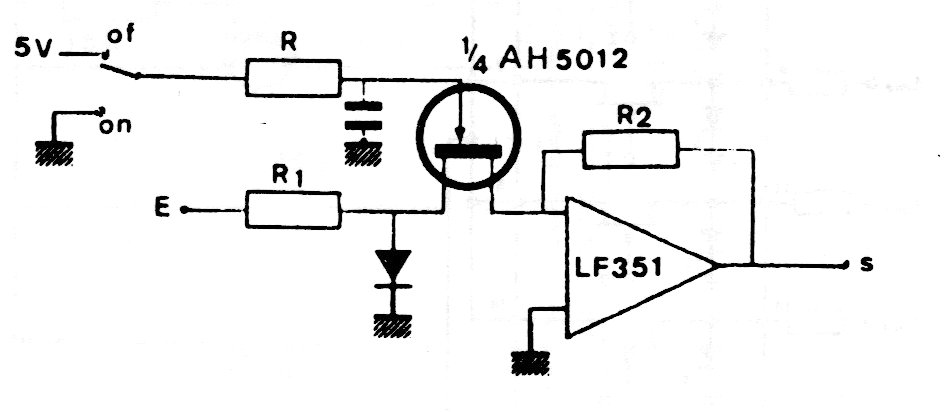

The FET used can be an equivalent like the BF245 or MPF102 and the operational one also admits an equivalent. The source must be symmetrical, and the resistors have values between 10k and 100k according to the intensity of the input and control signal and the desired gain.
