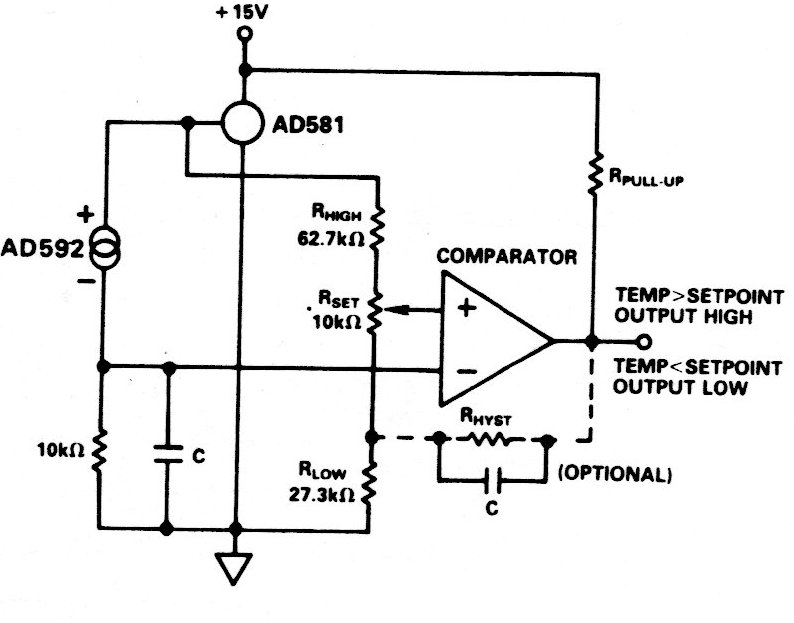

The sensor used in this circuit is uncommon today, however equivalent types can be tried. The comparator also supports modern equivalents. The circuit is from 80's documentation.
| Clique na imagem para ampliar |
Variable Temperature Thermostat (CB19957E)
- Details
- Written by: Newton C. Braga
