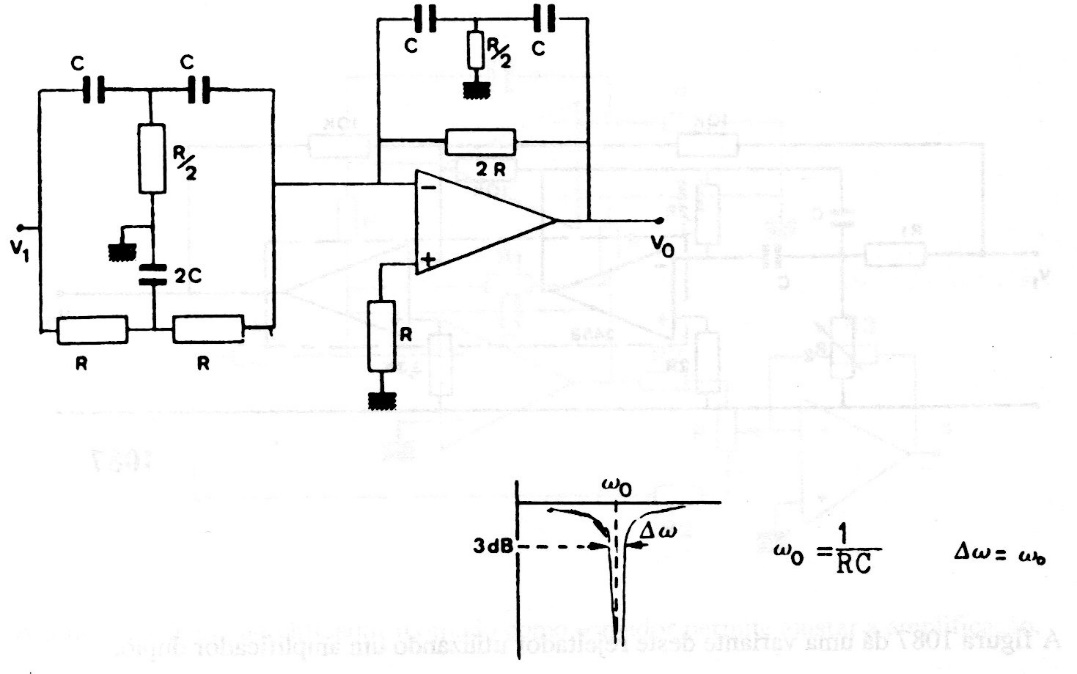

This high selectivity or high-Q filter can be implemented with almost any operational amplifier. The source must be symmetrical and the formula for calculating the components is given along with the diagram and response curve.
| Clique na imagem para ampliar |
