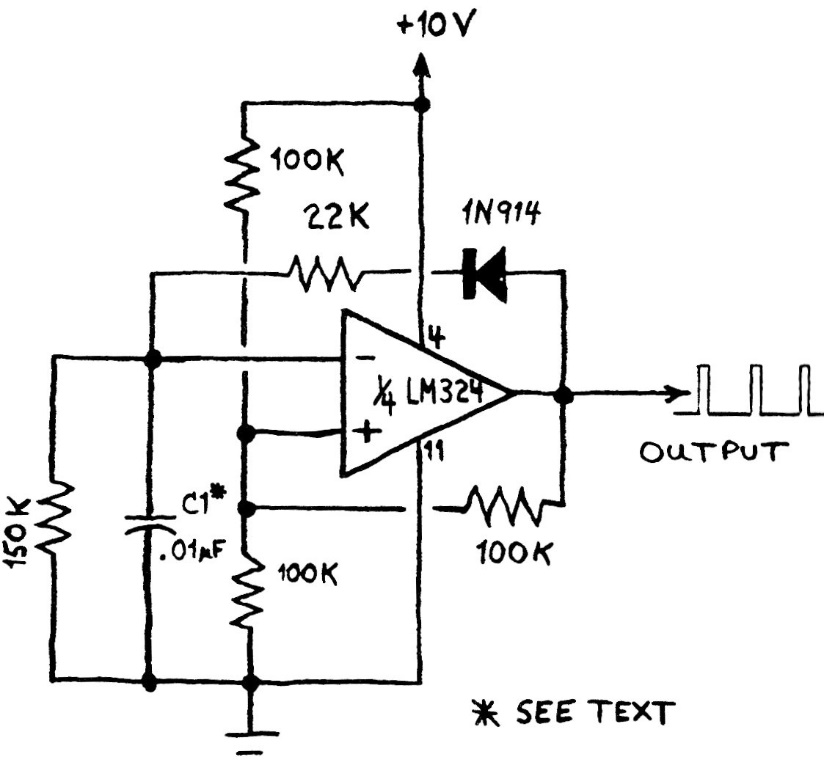

This circuit has the pulse width determined by the 22k resistor and the frequency by the capacitor and the 100k resistor. The circuit is from an American publication in 1991. The operational amplifier can be replaced by an equivalent and the supply voltage can be between 6 and 12 V.
