This is a Philips commercial circuit from the 1980s. The circuit must be powered by 28 V and its gain is 40dB. The input resistance is 100 k ohms. The integrated circuit must have a good heat sink.
| Clique na imagem para ampliar |

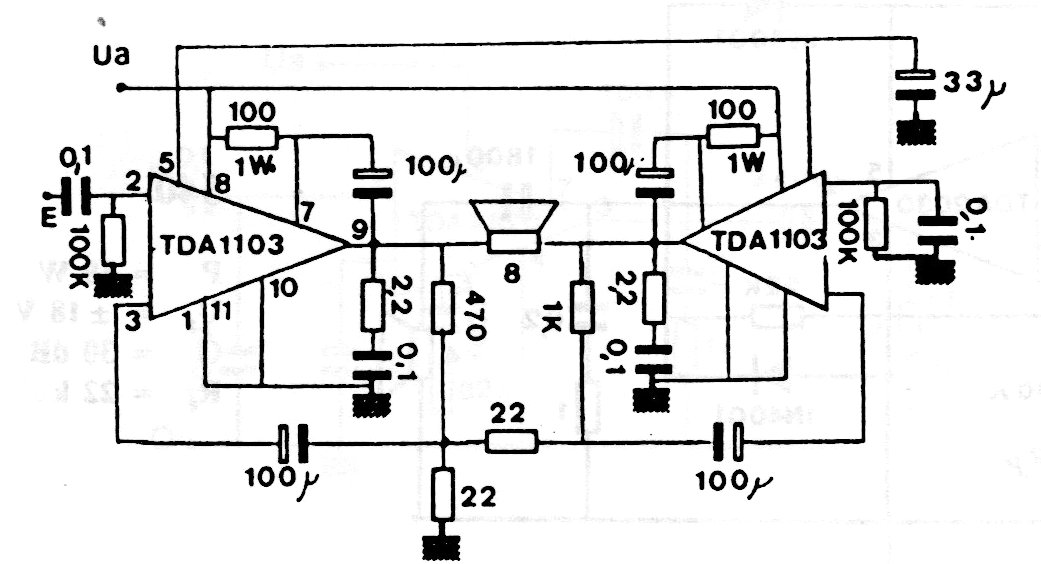

38 W Amplifier TDA1103 (CB19168E)
- Details
- Written by: Newton C. Braga
