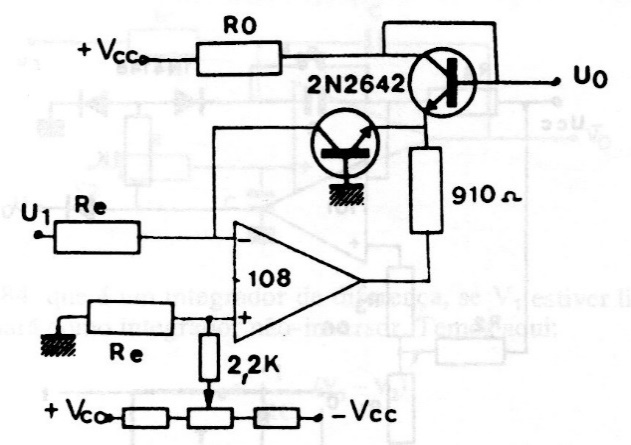

This configuration, which uses a transistorized circuit in the feedback, provides a logarithmic response to the operational amplifier. The source must be symmetrical and other operational ones can be used.
Logarithmic Amplifier II (CB19488E)
- Details
- Written by: Newton C. Braga
