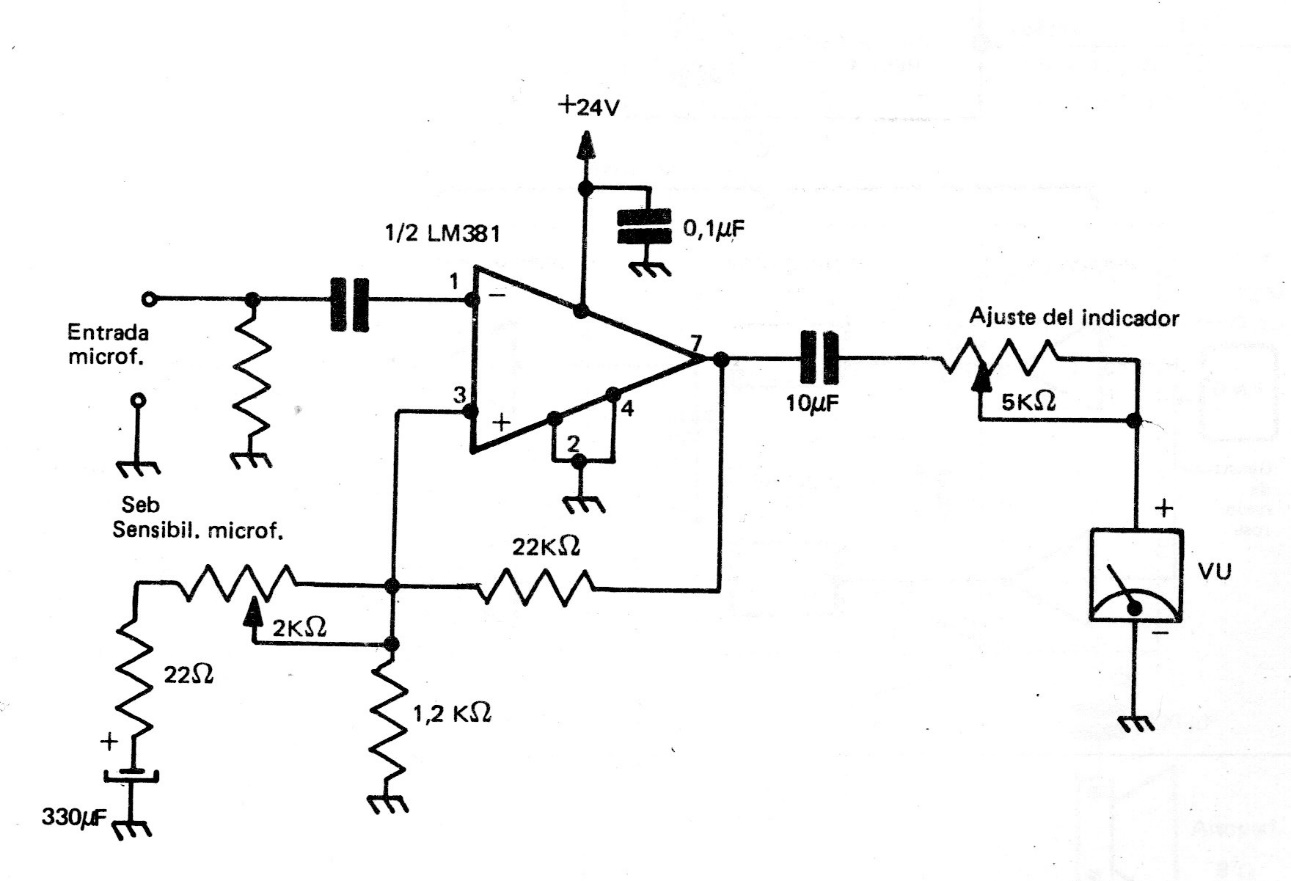

The LM381 integrated circuit is not very common today. The circuit is from an old publication, but it can be modified to work with more modern operating systems even powered by lower voltages. The instrument is a 0-1 mA milliammeter. The power supply does not have to be symmetrical.
