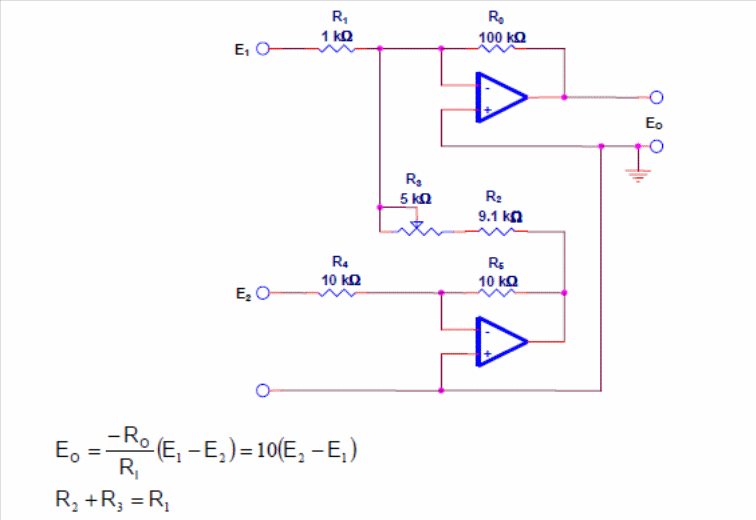

In this circuit found in a Texas Instruments 2016 documentation we have an adjustment for the rejection in common mode. The circuit makes use of two operational ones that can be of any type. The formulas next to the diagram allow you to change the circuit for other behaviors.
