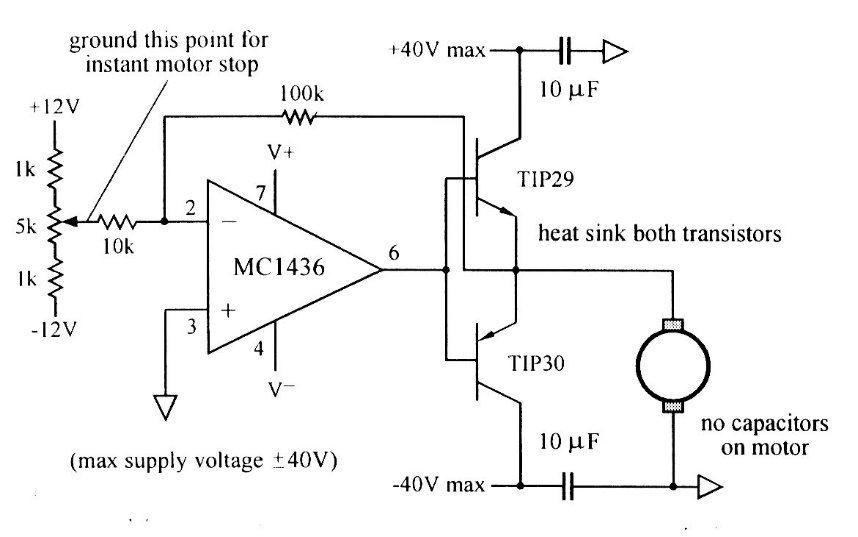

This circuit can control motors up to 40 V with a current up to 2 A and with appropriate transistors, even more. Transistors must be provided with heat sinks and the power supply must be symmetrical. The operating power supply has a lower voltage and equivalents can be used.
| Clique na imagem para ampliar |
