General purpose transistor stage (CB19876E)

Details
Written by: Newton C. Braga

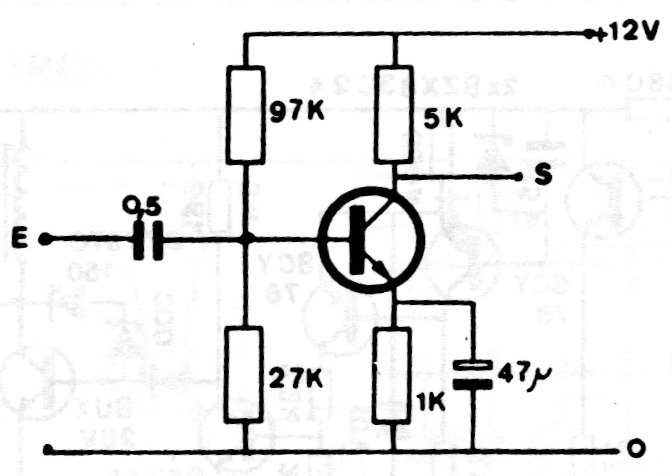

This amplifier step for small signals can use any general-purpose transistor like the BC548. The circuit can be powered by voltages from 6 to 12 V.




| Clique na imagem para ampliar |
