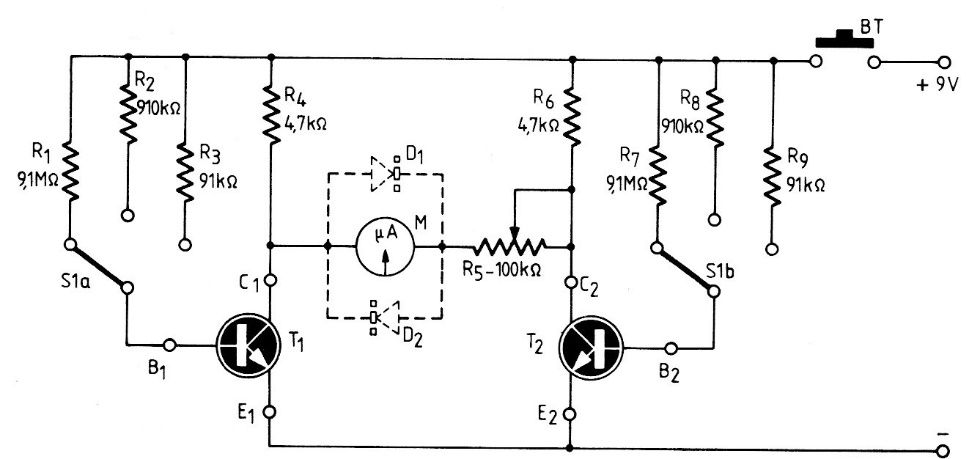

The purpose of this circuit is to compare transistor gains in order to obtain matched pairs that are important in many practical applications. The circuit is from 1981 documentation and the balance indicator instrument may be the lowest current scale of an ordinary multimeter.
| Clique na imagem para ampliar |
