Amplifier LM12 (CB19032E)

Details: Written by: Newton C. Braga

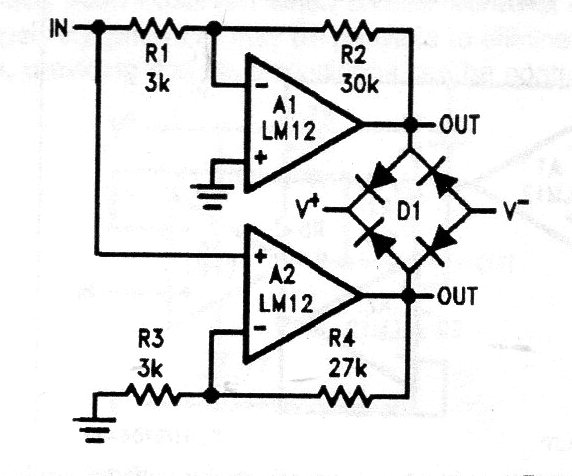

This is the normal configuration of the LM12 as a high voltage amplifier. The LM12 consists of a high voltage operational amplifier from National Semiconductor that is now a Texas group company.
