Noise Reducer (CB19824E)

Details
Written by: Newton C. Braga

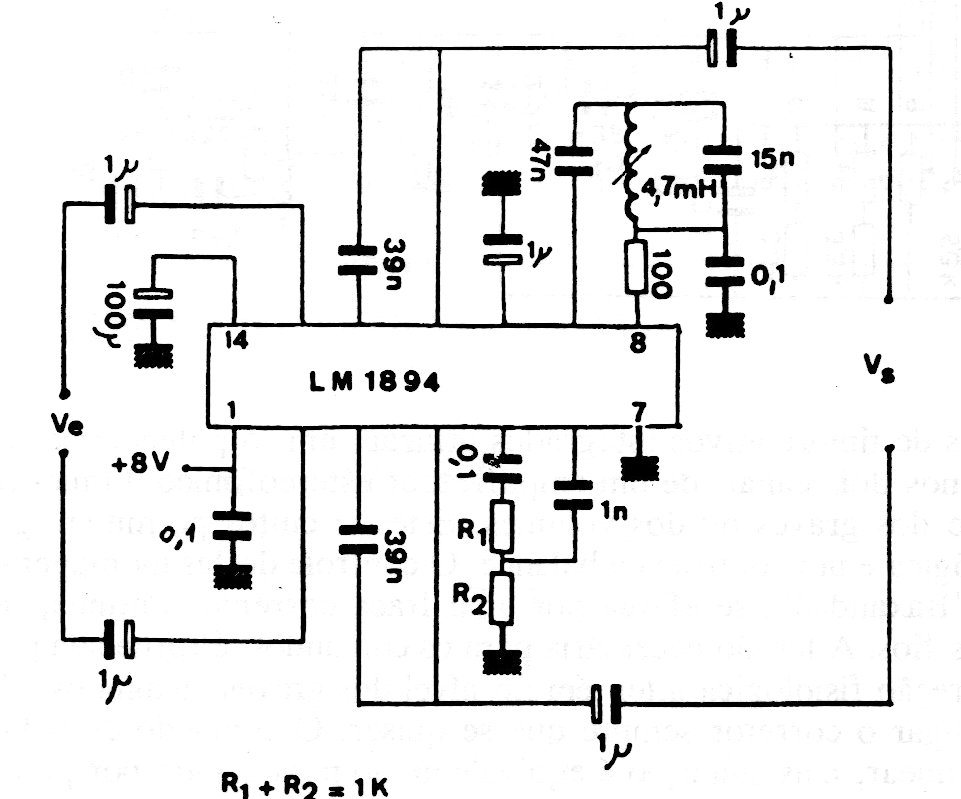

The integrated circuit used in this configuration for noise reduction on FM radios is not common today. The circuit is from 80s documentation and the reduction rate obtained is in the 10dB order.






| Clique na imagem para ampliar |
