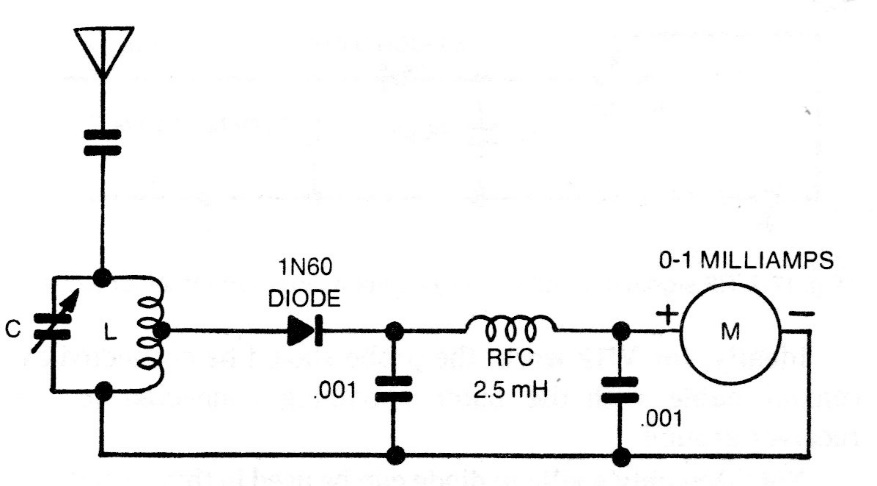

This circuit has a traditional configuration explored in several other points of this site. The coil and the tuning capacitor depend on the frequency range that must be monitored, and the worthless capacitor can be from 22 to 100 pF ceramic.
