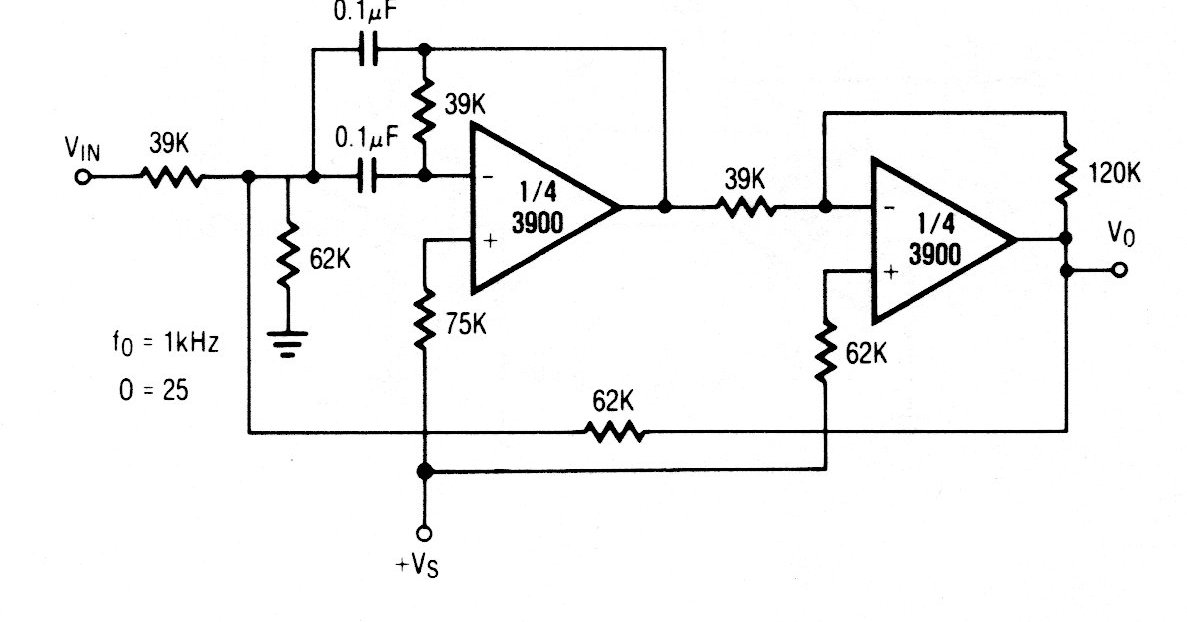

Active Band Pass Filter (CB19709E)

Details
Written by: Newton C. Braga



The operational amplifier used in this circuit is uncommon today, but the configuration can be made with more modern operators. The power supply is symmetrical.
