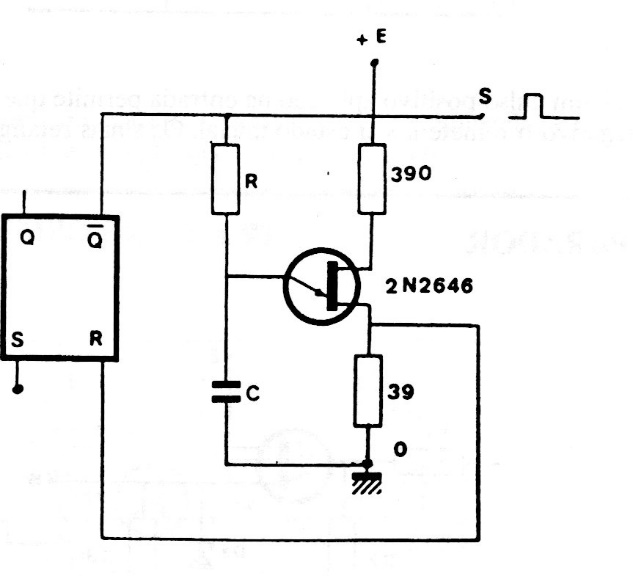

This circuit shows how a monostable can be obtained from an RS flip-flop using a unijunction transistor. R and C determines the monostable time constant and the supply must be done according to the logic.
