20 W Voltage Inverter (CB19916E)

Details
Written by: Newton C. Braga

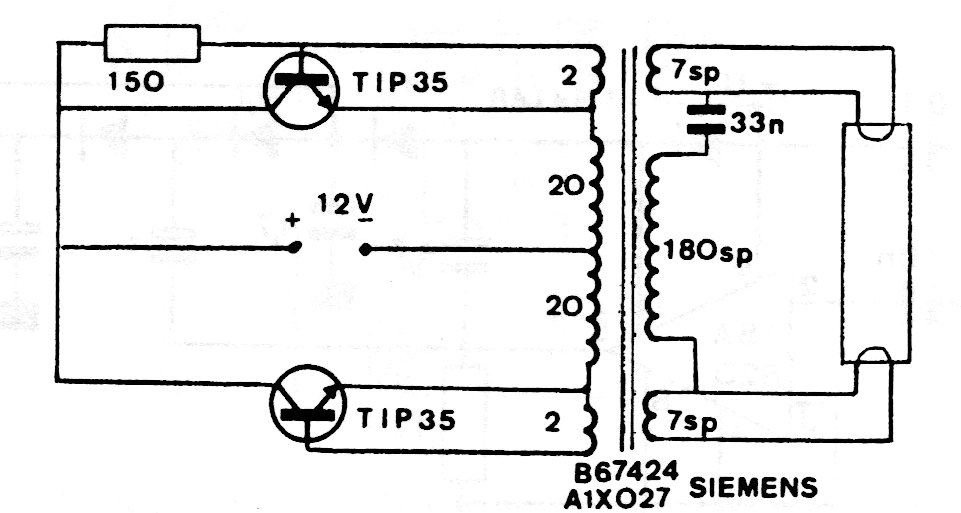

This circuit is used to light a 20 W fluorescent lamp from the 12 V of a car battery. The transformer must have the current according to the application. The circuit operates at 1.5 kHz.
