DC Load Drive (CB19964E)
- Details
- Written by: Newton C. Braga

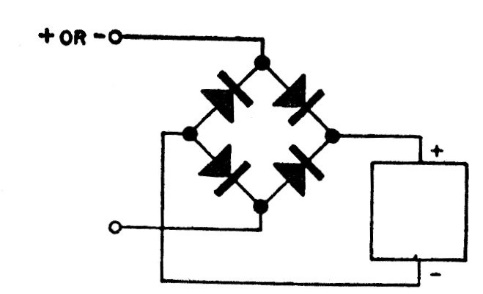

This is the basic configuration with a diode bridge to drive a DC load from an AC signal. The diodes must be according to the load, remembering that the circuit has no filtration.
