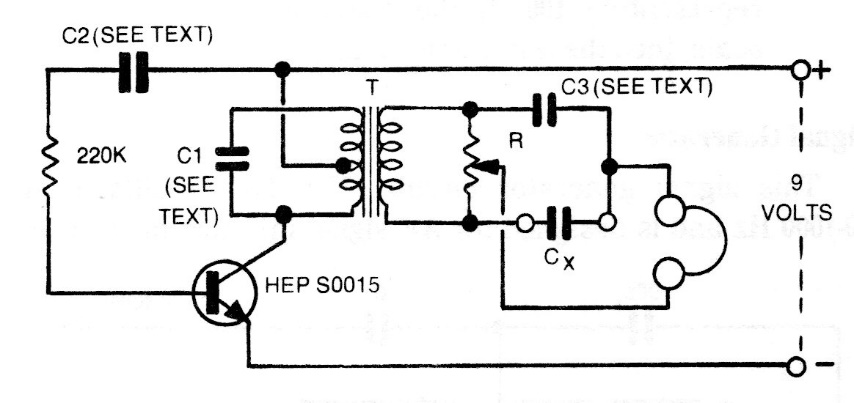

This circuit consists of a simple capacitance bridge. The handset can be high impedance from 500 ohms to 1 k or piezoelectric. The circuit clears when the sound disappears, and the scale can be made in the potentiometer according to the reference. The transformer is an audio output.
