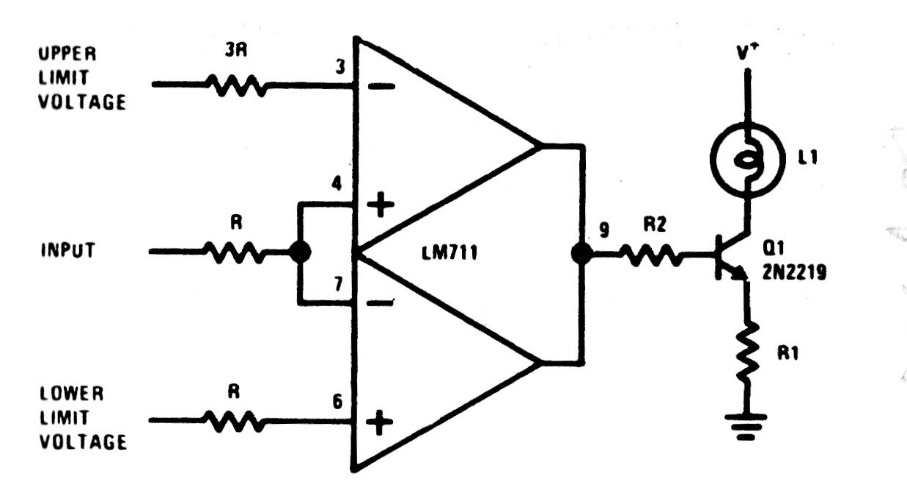

This limit detector or window discriminator uses an old operational amplifier, but it can be implemented with modern comparators or operational ones. The circuit activates a lamp, but another type of charge can be used.
