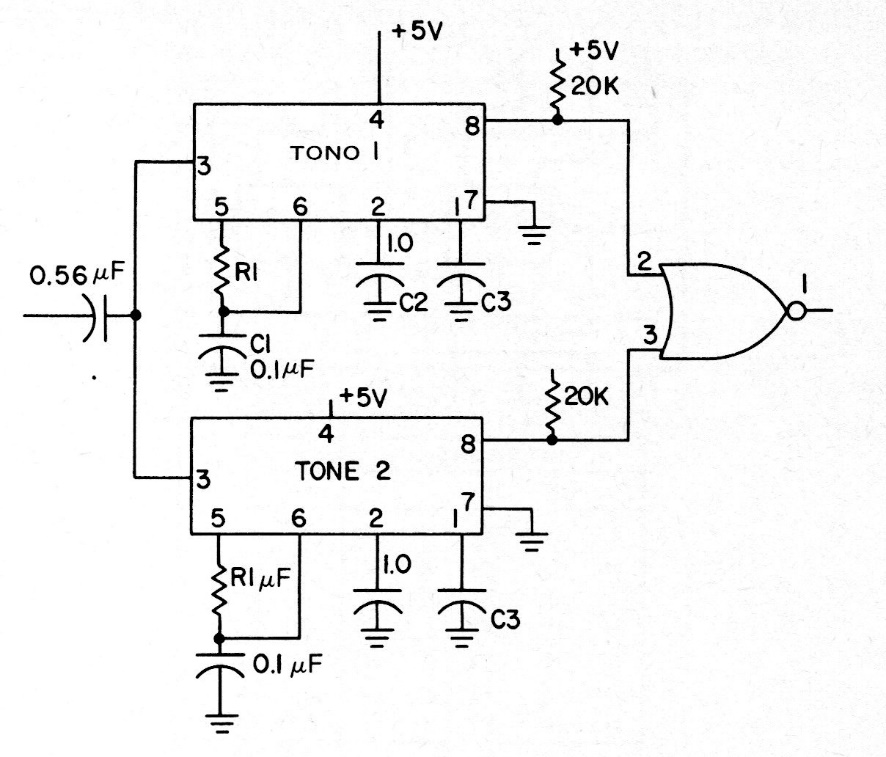

This circuit was found in an old documentation, working with the previous circuit (CB19379E) recognizing two sequential tones of different frequencies. The port used is CMOS and the tones are given by R1 and C1 in each circuit.
| Clique na imagem para ampliar |
