UJT Triangular Signal Generator (CB19509E)

Details
Written by: Newton C. Braga

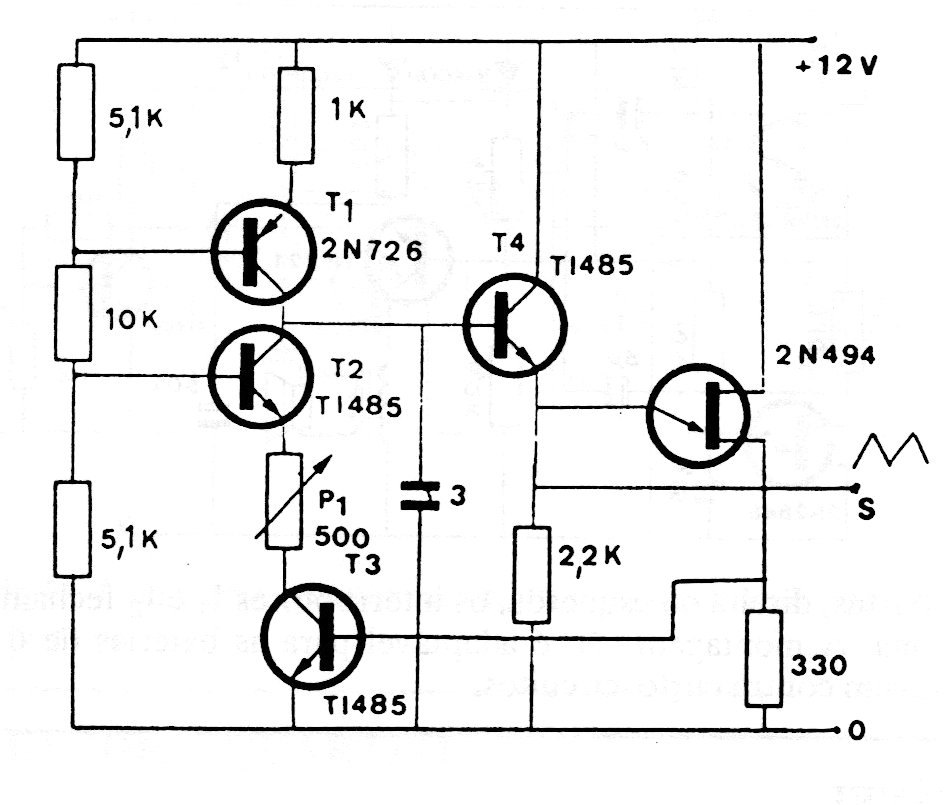

Signals of up to a few tens of kilohertz can be generated by this circuit found in a European publication from the 1980s. Transistors admit equivalents and the unijunction can be 2N2646.




| Clique na imagem para ampliar |
