SCR Switch II (CB19272E)

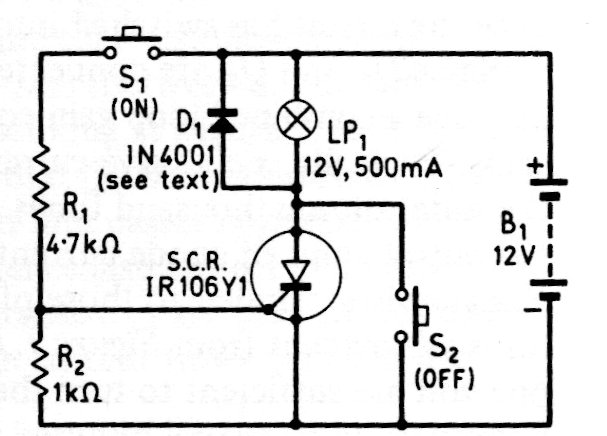

This circuit shows how to trigger and shut down an SCR using common pressure switches. The circuit was found in English documentation from the 1970s, but it is current, as it can be used with most common SCRs, such as those in the TIC series.
